Mars® 43326

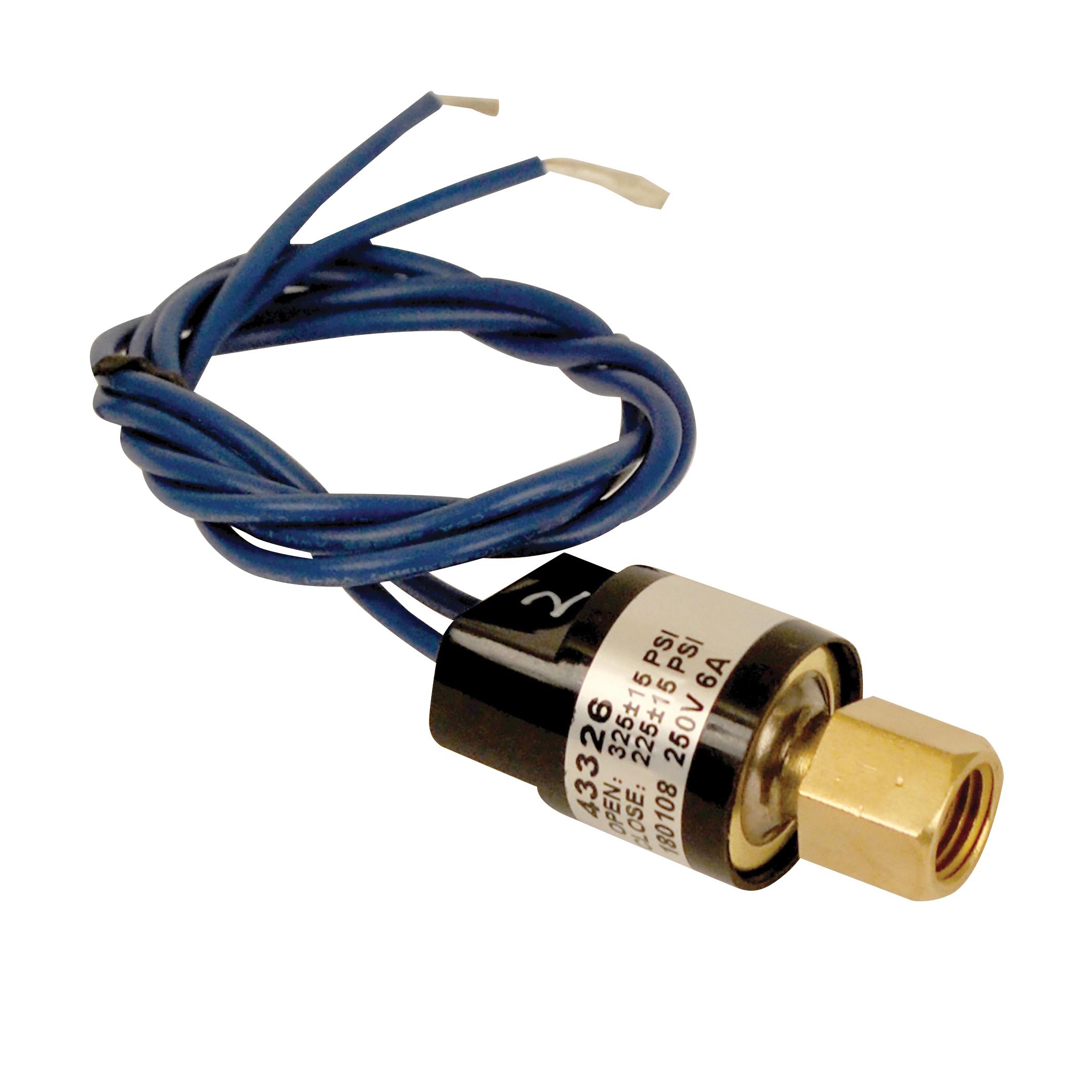

Mars® 43326 High Pressure Cut-Out Switch, 24 to 240 VAC, 6 A, 1/4 in Connection, Female SAE Flare Connection
Brand: Mars®
Item No: 43326
Sign In for Availability
Description
Mars® pressure switches deliver the reliability and performance that makes them the most trusted electro-mechanical sensor. The Mars® line of pressure switches cover many new R-410A applications along with traditional pressure setting switches.
Mars® High Pressure Cut-Out Switch, 24 to 240 VAC, 6 A, 325 psi Open Pressure, 225 psi Close Pressure, +/-10 psi Accuracy, SPST Switch, 100000 cycles Rated Life Cycle, 1/4 in Connection, Female SAE Flare Connection, 18 in Lead Length, Automatic Reset, Additional Information: Black XLP Wire, 1/2 in Stripped End Lead
Features
- Tamper-proof construction
- Direct mounting on tubing
Specifications
|
Accuracy |
+/-10 psi |
|
Additional Information |
Black XLP Wire, 1/2 in Stripped End Lead |
|
Amperage Rating |
6 A |
|
Close Pressure |
225 psi |
|
Connection Size |
1/4 in |
|
Connection Type |
Female SAE Flare |
|
Lead Length |
18 in |
|
Open Pressure |
325 psi |
|
Rated Life Cycle |
100000 cycles |
|
Reset Type |
Automatic |
|
Switch Type |
SPST |
|
Voltage Rating |
24 to 240 VAC |
