Mars® 43352

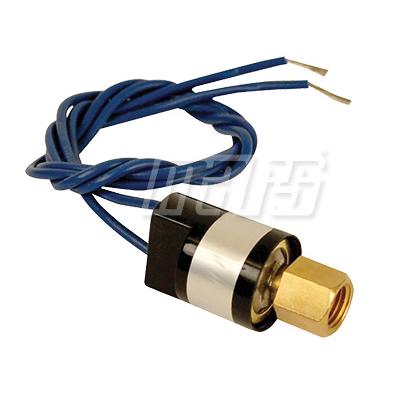

Mars® 43352 Low Pressure Pressure Switch, 20 to 250 V, 6 A, 5 psi, 1/4 in Connection, Female Flared Connection
Brand: Mars®
Item No: 43352
Sign In for Availability
Description
MARS pressure switches deliver the reliability and performance that makes them the most trusted electromechanical sensor. The MARS line of pressure switches cover many new R410A applications along with traditional pressure setting switches.
Mars® Low Pressure Pressure Switch, 20 to 250 V, 6 A, 5 psi Pressure, 50 psi Open, 95 psi Close, SPST Switch, 1/4 in Connection, Female Flared Connection, 18 in Lead, Automatic, 20 to 176 deg F, Direct, Screw Mount
Features
- Tamper-proof construction
- Compact size and lightweight for direct mounting
- Hermetically sealed sensor
Specifications
|
Amperage Rating |
6 A |
|
Close Pressure |
95 psi |
|
Connection Size |
1/4 in |
|
Connection Type |
Female Flared |
|
Lead Length |
18 in |
|
Mounting Type |
Direct, Screw |
|
Open Pressure |
50 psi |
|
Pressure Rating |
5 psi |
|
Reset Type |
Automatic |
|
Switch Type |
SPST |
|
Temperature Rating |
20 to 176 deg F |
|
Voltage Rating |
20 to 250 V |
