Mars® 05312

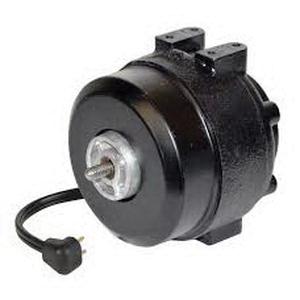

Mars® 05312 Unit Bearing Motor, 115 VAC, 0.4 A, 1550 rpm Speed, 6 W, 1 ph -Phase, 50 Hz, 60 Hz, 51 Frame
Brand: Mars®
Item No: 5312 ESSX
Sign In for Availability
Description
Mars® Unit Bearing Motor, 115 VAC, 0.4 A, 1550 rpm, 6 W, 1 ph Phase, 50 Hz, 60 Hz, 51 Frame, 1/4-20 x 0.38 in L Shaft, Counter-Clockwise Rotation, 1 Speed, Angle Mounting, B Insulation Class, Cast Iron, 125 deg C, 3-1/2 in Dia
Features
- Proven unit bearing design
- Impedance and thermal protected
- Fan-duty, continuous, air-over
- Threaded shaft
Specifications
|
Amperage Rating |
0.4 A |
|
Dimensions |
3-1/2 in Dia |
|
Frame Size |
51 |
|
Frequency Rating |
50 Hz, 60 Hz |
|
Insulation Class |
B |
|
Material |
Cast Iron |
|
Mounting Type |
Angle |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Power Rating |
6 W |
|
Rotation Type |
Counter-Clockwise |
|
Shaft Size |
1/4-20 x 0.38 in L |
|
Speed Rating |
1550 rpm |
|
Temperature Rating |
125 deg C |
|
Voltage Rating |
115 VAC |
Documentation
