Mars® 90340

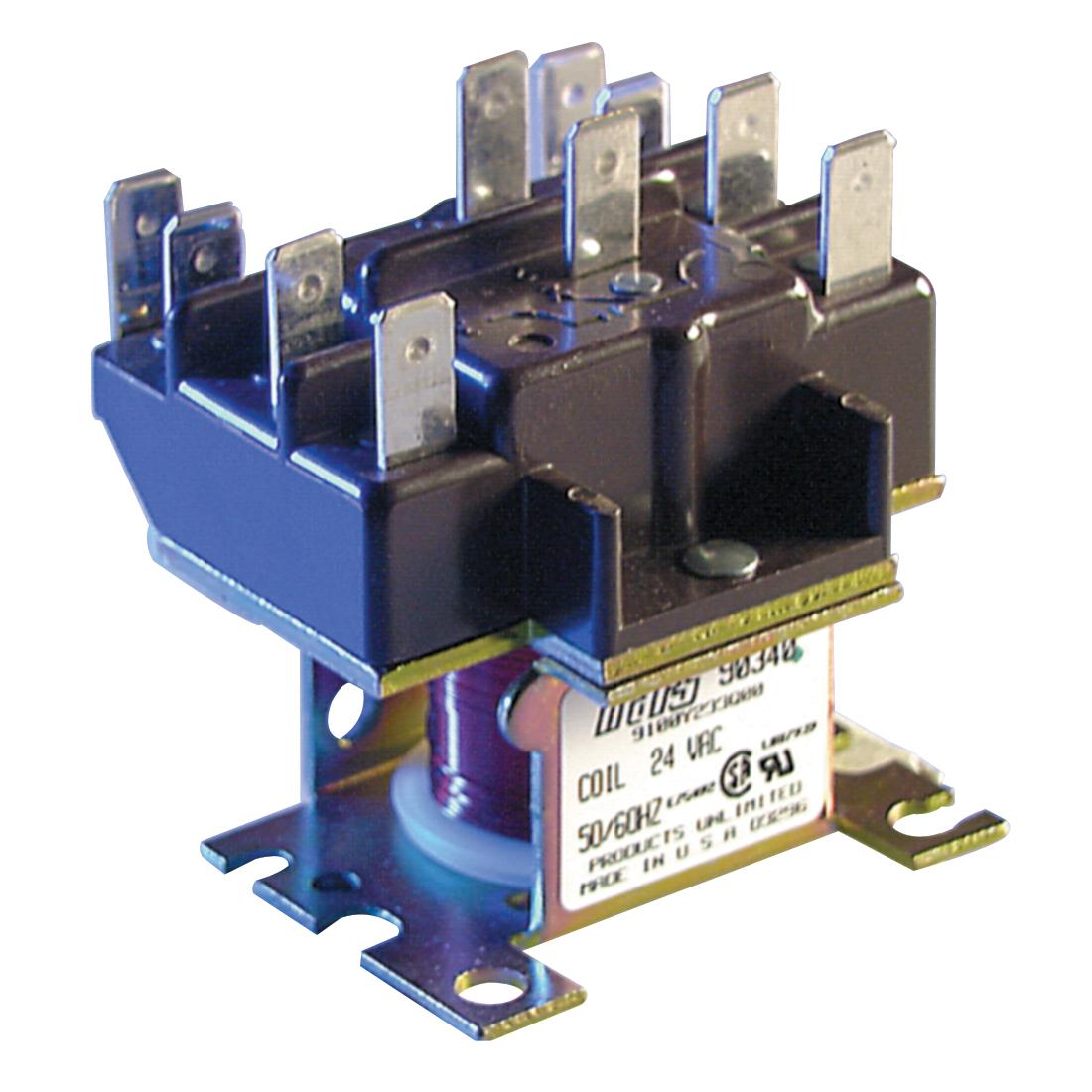

Mars® 340 Series 90340 2-Pole Air Conditioning HVAC/R Relay, 24 V Coil, 25 A
Brand: Mars®
Item No: 90340
Sign In for Availability
Description
The Mars® Series 903 switching relays are intended for many applications in air conditioning, refrigeration and heating. Other uses include general purpose switching in appliances, fan controls and vending machines. Our relays are available in 24 V, 110/120 V and 208/240 V coil voltages with various combinations of power and pilot-duty contacts.
Mars® 2-Pole Air Conditioning HVAC/R Relay, Series: 340 Series, 19.2 V, 25 A, 24 V Coil, Quick-Connect Terminal, 2.13 in Overall Width, 1.88 in Overall Depth, 2-1/4 in Overall Height, Additional Information: 50/60 Hz Frequency, Tab Mount Flange Bracket, 1/4 in Terminal
Features
- Replaces Honeywell and White-Rodgers/RBM cross reference on package
- Double quick-connect terminals on coil
- Base is designed for easy replacement of competitive relays
- Molded terminal numbers and circuit diagram on top of relay
Specifications
|
Additional Information |
50/60 Hz Frequency, Tab Mount Flange Bracket, 1/4 in Terminal |
|
Amperage Rating |
25 A |
|
Coil Voltage |
24 V |
|
Overall Depth |
1.88 in |
|
Overall Height |
2-1/4 in |
|
Overall Width |
2.13 in |
|
Series |
340 Series |
|
Terminal Type |
Quick-Connect |
|
Voltage Rating |
19.2 V |
