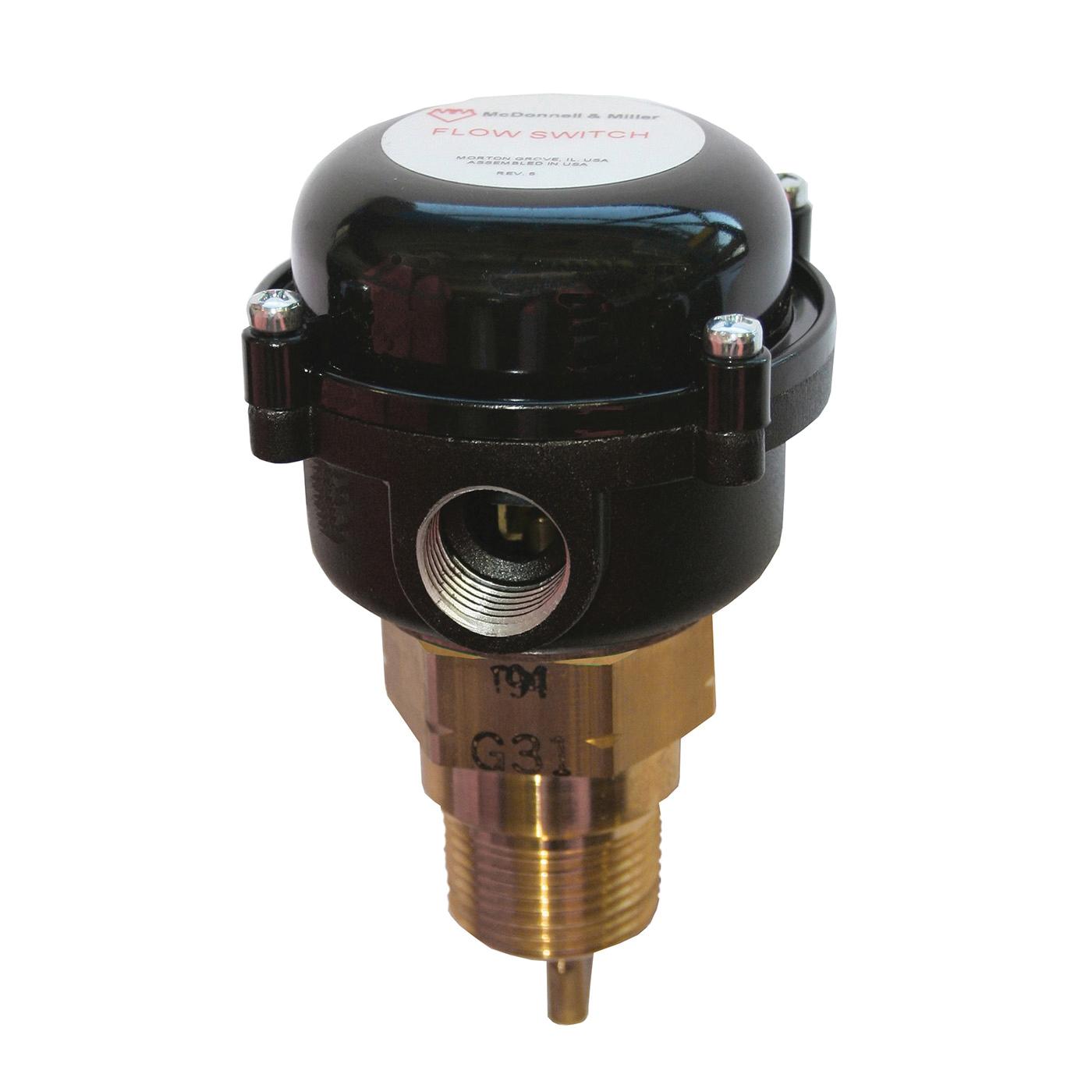

McDonnell & Miller FS8-W
McDonnell & Miller FS8-W Flow Switch, 7.4 A/3.7 A, 240 VAC/120 VAC
Brand: McDonnell & Miller
Item No: FS8-W
Sign In for Availability
Description
McDonnell & Miller Flow Switch, General-Purpose Switch, 7.4 A/3.7 A, 240 VAC/120 VAC, 160 psi, Connection Type: NPT, NEMA 4X Enclosure, 225 deg F
Features
- For general-purpose applications with environmental exposure or those requiring a water-tight, dust-tight or a NEMA 4X-rated flow switch 1 in NPT
- Sealed monel bellows
- Single pole, double throw snap switch
- Four stainless steel paddles included 1, 2, 3 and 6 in
- Sensitivity adjusting screw makes flow adjustment easy
- Minimum temperature (fluid or ambient) 32 deg F
- Replacement for NEMA 4X style flow switches from
Specifications
|
Amperage Rating |
7.4 A/3.7 A |
|
Connection Type |
NPT |
|
Enclosure Type |
NEMA 4X |
|
Pressure Rating |
160 psi |
|
Switch Type |
General-Purpose |
|
Temperature Rating |
225 deg F |
|
Voltage Rating |
240 VAC/120 VAC |
Documentation
