Mitsubishi Electric MLZ-KX18NL MLZ-KX18NL

Mitsubishi Electric MLZ-KX18NL

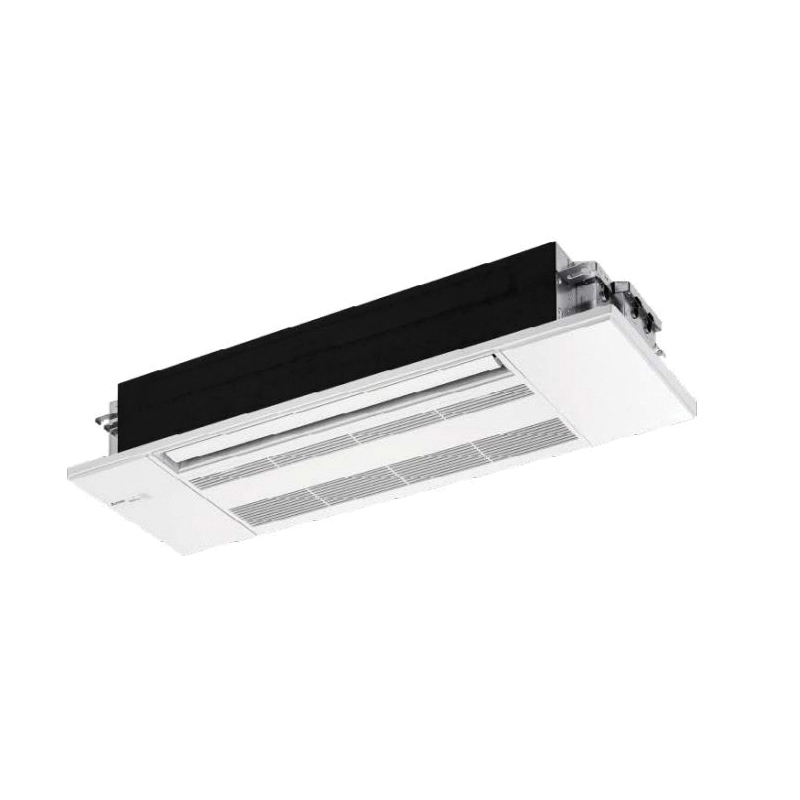

Mitsubishi Electric MLZ-KX18NL 1-Way Cassette Mini-Split Heat Pump System, 1/2 in Gas, 1/4 in Liquid, 208/230 V

Brand: Mitsubishi Electric

Item No: MLZ-KX18NL

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric 1-Way Cassette Mini-Split Heat Pump System, 1/2 in Gas, 1/4 in Liquid, 208/230 V, 1390 W Cooling, 1750 W Heating, 60 Hz, 1 ph, 16400 Btu/hr Cooling, 19000 Btu/hr Heating, 403 cfm Cooling, 417 cfm Heating, 11.7 EER Rating, 17.2 SEER, 10 HSPF, Flared Connection, 1 in Connection, R-454B Refrigerant, 47 dBA Cooling, 48 dBA Heating Sound Level, Ceiling Mounting, 14-3/16 in Overall Length, 43-3/8 in Overall Width, 7-5/16 in Overall Height

Features

  • Adjustable fan speeds and vane directions
  • Auto Vane Control: Outlet vanes can be moved left and right, and up and down using the remote controller. This improved air flow control feature solves the problem of drafts
  • Built-in condensate lift mechanism (19.6"): Reduces the need for an additional pump to remove condensate water
  • Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort
  • Fits between 16" joists spacing
  • Multiple control options including: Hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
  • Serviceable from the bottom (electrical and flare connections)
  • Stylish, square design panel
  • Washable antibacterial and deodorizing filter
  • Weekly Timer Function: Easily set desired temperatures and operation ON/OFF times to match lifestyle patterns. Reduce wasted energy consumption by using the timer to prevent forgetting to turn off the unit and eliminate temperature setting adjustments
  • Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more

    • Specifications

    BTU Rating

    		16400 Btu/hr Cooling, 19000 Btu/hr Heating

    CFM Rating

    		403 cfm Cooling, 417 cfm Heating

    Connection Size

    		1 in

    Connection Type

    		Flared

    EER Rating

    		11.7

    Frequency Rating

    		60 Hz

    HSPF Rating

    		10

    Mounting Type

    		Ceiling

    Overall Height

    		7-5/16 in

    Overall Length

    		14-3/16 in

    Overall Width

    		43-3/8 in

    Phase

    		1 ph

    Power Rating

    		1390 W Cooling, 1750 W Heating

    Refrigerant Type

    		R-454B

    SEER Rating

    		17.2

    Size

    		1/2 in Gas, 1/4 in Liquid

    Sound Level

    		47 dBA Cooling, 48 dBA Heating

    Voltage Rating

    		208/230 V
