Mitsubishi Electric MSY-GX24NL MSY-GX24NL

Mitsubishi Electric MSY-GX24NL

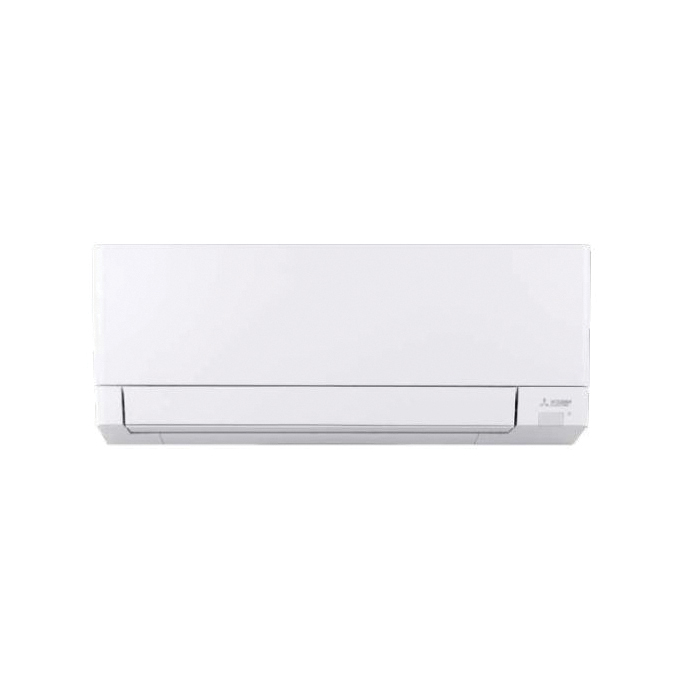

Mitsubishi Electric MSY-GX24NL Ductless Mini-Split Indoor Unit, 5/8 in Gas, 1/4 in Liquid, 208/230 V, 22400 Btu/hr

Brand: Mitsubishi Electric

Item No: MSY-GX24NL

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric Ductless Mini-Split Indoor Unit, 5/8 in Gas, 1/4 in Liquid, 208/230 V, 1720 W, 60 Hz, 1 ph, 22400 Btu/hr, 324 to 765 cfm, 13 EER Rating, 21.5 SEER, Flared Connection, 25 A Fuse Rating, 53 dBA Sound Level, Wall Mounting, Finish: Munsell 0.7PB 9.2/0.4, 67 to 90 deg F, 10-1/8 in Overall Length, 43-5/16 in Overall Width, 12-13/16 in Overall Height, 1-Zone, R-454B Refrigerant

Features

  • Dual Barrier Coating: The patented Dual Barrier Coating reduces the collection of contaminants like dust, fibers, smoke, and oil on the inner surface of the heat pump, resulting in optimal airflow and easier maintenance
  • Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort
  • Multiple control options including: Back-lit screen hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
  • Multiple fan speed options: Low, Medium, High, Powerful, Auto
  • Nano Platinum Filter: This filter has a large capture area and incorporates nanometer-sized platinum-ceramic particles and is designed to reduce the presence of certain nonliving particles, while deodorizing the circulating air
  • Powerful Mode: Temporarily drops or raises the set point and fan speed in order to quickly bring the room to the desired temperature
  • Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet
  • Slim Design: Slim wall-mounted indoor units provide zone comfort control
  • Smart Dry Mode: Improves humidity control with minimal over-cooling of the space
  • Smart Set: recalls a preferred preset temperature setting at the touch of a button
  • Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more

    • Specifications

    Additional Information

    		1-Zone, R-454B Refrigerant

    BTU Rating

    		22400 Btu/hr

    CFM Rating

    		324 to 765 cfm

    Connection Type

    		Flared

    EER Rating

    		13

    Finish

    		Munsell 0.7PB 9.2/0.4

    Frequency Rating

    		60 Hz

    Fuse Rating

    		25 A

    Mounting Type

    		Wall

    Overall Height

    		12-13/16 in

    Overall Length

    		10-1/8 in

    Overall Width

    		43-5/16 in

    Phase

    		1 ph

    Power Rating

    		1720 W

    SEER Rating

    		21.5

    Size

    		5/8 in Gas, 1/4 in Liquid

    Sound Level

    		53 dBA

    Temperature Rating

    		67 to 90 deg F

    Voltage Rating

    		208/230 V
