Mitsubishi Electric MSZ-JX12WL MSZ-JX12WL

Mitsubishi Electric MSZ-JX12WL

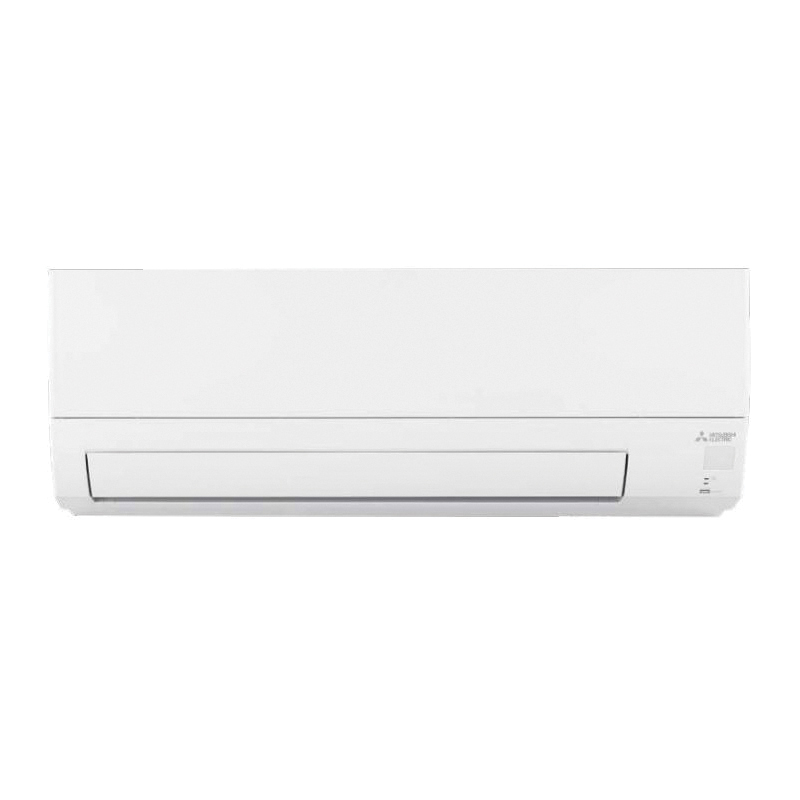

Mitsubishi Electric MSZ-JX12WL Ductless Mini-Split Indoor Unit, 3/8 in Gas, 1/4 in Liquid, 115 V, 1 ph

Brand: Mitsubishi Electric

Item No: MSZ-JX12WL

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric Ductless Mini-Split Indoor Unit, 3/8 in Gas, 1/4 in Liquid, 115 V, 960 W Cooling, 990 W Heating, 60 Hz, 1 ph, 4 Fan Speeds, 12000 Btu/hr Cooling, 12200 Btu/hr Heating, 468 cfm Cooling, 395 cfm Heating, 12.5 EER Rating, 20 SEER, 10 HSPF, Flared Connection, 20 A Fuse Rating, 47 dBA Cooling, 43 dBA Heating Sound Level, Wall Mounting, Finish: Munsell 0.7PB 9.2/0.4, 67 to 90 deg F, 9-1/4 in Overall Length, 33 in Overall Width, 11-1/32 in Overall Height, 1-Zone, R-454B Refrigerant

Features

  • 115V
  • 12-hour timer
  • Dual Barrier Coating: The patented Dual Barrier Coating reduces the collection of contaminants like dust, fibers, smoke, and oil on the inner surface of the heat pump, resulting in optimal airflow and easier maintenance
  • Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort
  • Four fan speed options: Low, Medium, high, Super-high
  • Multiple control options including: Back-lit screen hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers
  • Smart Dry Mode: Improves humidity control with minimal over-cooling of the space

    • Specifications

    Additional Information

    		1-Zone, R-454B Refrigerant

    BTU Rating

    		12000 Btu/hr Cooling, 12200 Btu/hr Heating

    CFM Rating

    		468 cfm Cooling, 395 cfm Heating

    Connection Type

    		Flared

    EER Rating

    		12.5

    Finish

    		Munsell 0.7PB 9.2/0.4

    Frequency Rating

    		60 Hz

    Fuse Rating

    		20 A

    HSPF Rating

    		10

    Mounting Type

    		Wall

    Number of Fan Speeds

    		4

    Overall Height

    		11-1/32 in

    Overall Length

    		9-1/4 in

    Overall Width

    		33 in

    Phase

    		1 ph

    Power Rating

    		960 W Cooling, 990 W Heating

    SEER Rating

    		20

    Size

    		3/8 in Gas, 1/4 in Liquid

    Sound Level

    		47 dBA Cooling, 43 dBA Heating

    Temperature Rating

    		67 to 90 deg F

    Voltage Rating

    		115 V
