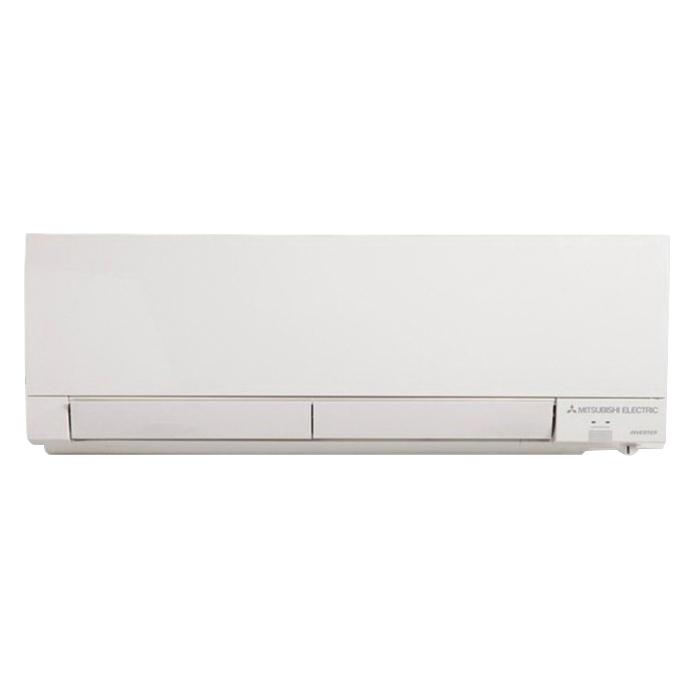

Mitsubishi Electric MSZ-FH06NA
Mitsubishi Electric M Series MSZ-FH06NA Heat Pump, 208 to 230 V, 1 A, 6000 Btu/hr BTU, 1 ph -Phase
Brand: Mitsubishi Electric
Item No: MSZFH06NA
Sign In for Availability
Description
Mitsubishi Electric Heat Pump, M Series, 208 to 230 V, 1 A, 60 Hz, 1 ph Phase, 6000 Btu/hr, 328 cfm, 381 cfm, 33.1 SEER, 1/4 in Liquid, 3/8 in Gas, 5/8 in OD Drain Connection, 40 dBA Sound Level, Wall Mounting, White, 36-7/16 in Overall Width, 12-11/16 in Overall Height, Additional Information: R-410A Refrigerant, 9-3/16 in D
Features
- Hyper-heating performance down to -13 deg F outdoor ambient
- 100% heating capacity at 5 deg F outdoor ambient
- Triple action filtration - nano-platinum filter, electrostatic anti-allergen enzyme filter, deodorizing filter
- Double-vane air delivery for enhanced circulation
- I-see sensor 3D - infrared human sensing technologies to measure location of human heat signatures, i-see sensing floor temperature to deliver conditioned air to those areas by double-van airflow
- New multi-function wireless controller
Specifications
|
Additional Information |
R-410A Refrigerant, 9-3/16 in D |
|
Amperage Rating |
1 A |
|
BTU Rating |
6000 Btu/hr |
|
CFM Rating |
328 cfm, 381 cfm |
|
Color |
White |
|
Connection Type |
1/4 in Liquid, 3/8 in Gas, 5/8 in OD Drain |
|
Frequency Rating |
60 Hz |
|
Mounting Type |
Wall |
|
Overall Height |
12-11/16 in |
|
Overall Width |
36-7/16 in |
|
Phase |
1 ph |
|
SEER Rating |
33.1 |
|
Series |
M Series |
|
Sound Level |
40 dBA |
|
Voltage Rating |
208 to 230 V |
