Mitsubishi Electric MUZ-FX06NLHZ MUZ-FX06NLHZ

Mitsubishi Electric MUZ-FX06NLHZ

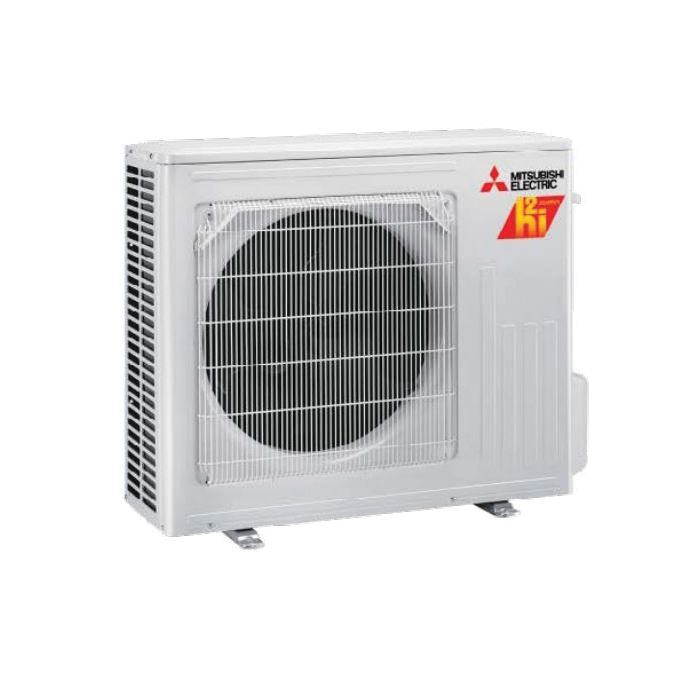

Mitsubishi Electric MUZ-FX06NLHZ Ductless Mini-Split Heat Pump Outdoor Unit, 208/230 V, 6000 Btu/hr Cooling, 1 ph

Brand: Mitsubishi Electric

Item No: MUZ-FX06NLHZ

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric Ductless Mini-Split Heat Pump Outdoor Unit, 208/230 V, 280 W Cooling, 540 W Heating, 60 Hz, 1 ph, 9000 Btu/hr Heating, 6000 Btu/hr Cooling, 477 cfm Heating CFM Rating, 420 cfm Cooling CFM Rating, 21.45 EER Rating, 35 SEER, 13 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 15 A Fuse Rating, 42 dBA Heating Sound Level, 40 dBA Cooling Sound Level, Wall Mounting, Finish: Munsell 3Y 7.8/1.1, 14 to 115 deg F Heating Operating Temperature, -22 to 75 deg F Cooling Operating Temperature, 11-1/4 in Overall Length, 31-1/2 in Overall Width, 28-1/8 in Overall Height, 1-Zone

Features

  • Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas
  • H2i sumo™ Hyper-Heating INVERTER: 100% heating capacity at outdoor temperatures -10 deg F with guaranteed operation down to -22 deg F
  • Hot-start technology: The fan only blows air when the heat exchanger has warmed, preventing blasts of cold air at start-up

    • Specifications

    Additional Information

    		1-Zone

    Compressor Type

    		Twin Rotary

    Connection Type

    		Flared

    Cooling BTU Rating

    		6000 Btu/hr

    Cooling CFM Rating

    		420 cfm

    Cooling Operating Temperature

    		-22 to 75 deg F

    Cooling Sound Level

    		40 dBA

    EER Rating

    		21.45

    Finish

    		Munsell 3Y 7.8/1.1

    Frequency Rating

    		60 Hz

    Fuse Rating

    		15 A

    HSPF Rating

    		13

    Heating BTU Rating

    		9000 Btu/hr

    Heating CFM Rating

    		477 cfm

    Heating Operating Temperature

    		14 to 115 deg F

    Heating Sound Level

    		42 dBA

    Liquid Line Size

    		1/4 in

    Mounting Type

    		Wall

    Overall Height

    		28-1/8 in

    Overall Length

    		11-1/4 in

    Overall Width

    		31-1/2 in

    Phase

    		1 ph

    Power Rating

    		280 W Cooling, 540 W Heating

    Refrigerant Type

    		R-454B

    SEER Rating

    		35

    Suction Line Size

    		3/8 in

    Voltage Rating

    		208/230 V
