Mitsubishi Electric MUZ-JX09WL MUZ-JX09WL

Mitsubishi Electric MUZ-JX09WL

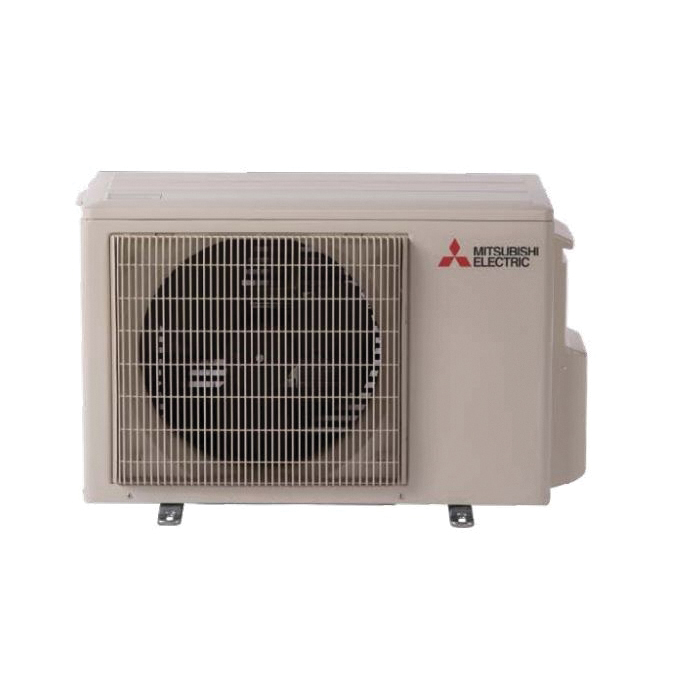

Mitsubishi Electric MUZ-JX09WL Ductless Mini-Split Heat Pump Outdoor Unit, 115 V, 0.5 A, 9000 Btu/hr Cooling

Brand: Mitsubishi Electric

Item No: MUZ-JX09WL

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric Ductless Mini-Split Heat Pump Outdoor Unit, 115 V, 0.5 A, 720 W Cooling, 900 W Heating, 60 Hz, 1 ph, 4 Fan Speeds, 10900 Btu/hr Heating, 9000 Btu/hr Cooling, 1196 cfm Heating CFM Rating, 1305 cfm Cooling CFM Rating, 12.5 EER Rating, 20 SEER, 10 HSPF, Flared Connection, Single Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 15 A Fuse Rating, Inverter Drive, 50 dBA Heating Sound Level, 46 dBA Cooling Sound Level, Wall Mounting, Finish: Munsell 3Y 7.8/1.1, -5 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 11-1/4 in Overall Length, 31-1/2 in Overall Width, 21-5/8 in Overall Height, 1-Zone

Features

  • Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas
  • INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point

    • Specifications

    Additional Information

    		1-Zone

    Amperage Rating

    		0.5 A

    Compressor Type

    		Single Rotary

    Connection Type

    		Flared

    Cooling BTU Rating

    		9000 Btu/hr

    Cooling CFM Rating

    		1305 cfm

    Cooling Operating Temperature

    		14 to 115 deg F

    Cooling Sound Level

    		46 dBA

    Drive Type

    		Inverter

    EER Rating

    		12.5

    Finish

    		Munsell 3Y 7.8/1.1

    Frequency Rating

    		60 Hz

    Fuse Rating

    		15 A

    HSPF Rating

    		10

    Heating BTU Rating

    		10900 Btu/hr

    Heating CFM Rating

    		1196 cfm

    Heating Operating Temperature

    		-5 to 75 deg F

    Heating Sound Level

    		50 dBA

    Liquid Line Size

    		1/4 in

    Mounting Type

    		Wall

    Number of Fan Speeds

    		4

    Overall Height

    		21-5/8 in

    Overall Length

    		11-1/4 in

    Overall Width

    		31-1/2 in

    Phase

    		1 ph

    Power Rating

    		720 W Cooling, 900 W Heating

    Refrigerant Type

    		R-454B

    SEER Rating

    		20

    Suction Line Size

    		3/8 in

    Voltage Rating

    		115 V
