Mitsubishi Electric MUZ-WX24NL MUZ-WX24NL

Mitsubishi Electric MUZ-WX24NL

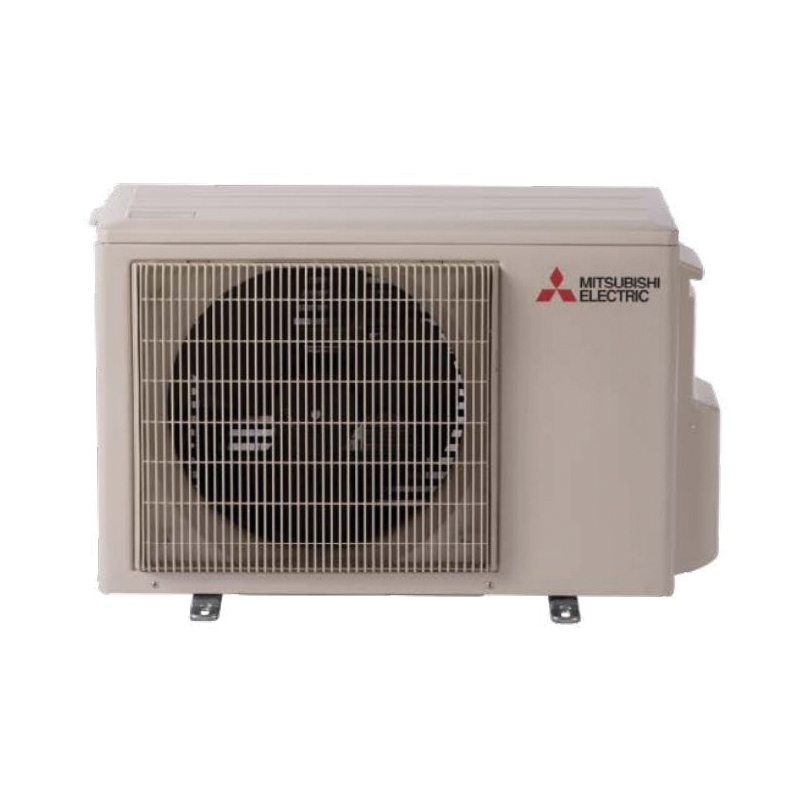

Mitsubishi Electric MUZ-WX24NL Ductless Mini-Split Heat Pump Outdoor Unit, 208/230 V, 0.74 A, 22400 Btu/hr Cooling

Brand: Mitsubishi Electric

Item No: MUZ-WX24NL

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric Ductless Mini-Split Heat Pump Outdoor Unit, 208/230 V, 0.74 A, 2800 W Cooling, 2680 W Heating, 60 Hz, 1 ph, 4 Fan Speeds, 26000 Btu/hr Heating, 22400 Btu/hr Cooling, 1582 cfm Heating CFM Rating, 1816 cfm Cooling CFM Rating, 8 EER Rating, 18 SEER, 8.5 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 1/2 in Suction Line, 20 A Fuse Rating, Inverter Drive, 55 dBA Heating Sound Level, 57 dBA Cooling Sound Level, Wall Mounting, Finish: Munsell 3Y 7.8/1.1, 5 to 75 deg F Heating Operating Temperature, 32 to 115 deg F Cooling Operating Temperature, 11-1/4 in Overall Length, 31-1/2 in Overall Width, 28-1/8 in Overall Height, 1-Zone

Features

  • Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger of the outdoor unit to protect against corrosion caused by salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas
  • INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point
  • Powered by Outdoor Unit: The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns

    • Specifications

    Additional Information

    		1-Zone

    Amperage Rating

    		0.74 A

    Compressor Type

    		Twin Rotary

    Connection Type

    		Flared

    Cooling BTU Rating

    		22400 Btu/hr

    Cooling CFM Rating

    		1816 cfm

    Cooling Operating Temperature

    		32 to 115 deg F

    Cooling Sound Level

    		57 dBA

    Drive Type

    		Inverter

    EER Rating

    		8

    Finish

    		Munsell 3Y 7.8/1.1

    Frequency Rating

    		60 Hz

    Fuse Rating

    		20 A

    HSPF Rating

    		8.5

    Heating BTU Rating

    		26000 Btu/hr

    Heating CFM Rating

    		1582 cfm

    Heating Operating Temperature

    		5 to 75 deg F

    Heating Sound Level

    		55 dBA

    Liquid Line Size

    		1/4 in

    Mounting Type

    		Wall

    Number of Fan Speeds

    		4

    Overall Height

    		28-1/8 in

    Overall Length

    		11-1/4 in

    Overall Width

    		31-1/2 in

    Phase

    		1 ph

    Power Rating

    		2800 W Cooling, 2680 W Heating

    Refrigerant Type

    		R-454B

    SEER Rating

    		18

    Suction Line Size

    		1/2 in

    Voltage Rating

    		208/230 V
