Mitsubishi Electric MXZ-3D30NLHZ MXZ-3D30NLHZ

Mitsubishi Electric MXZ-3D30NLHZ

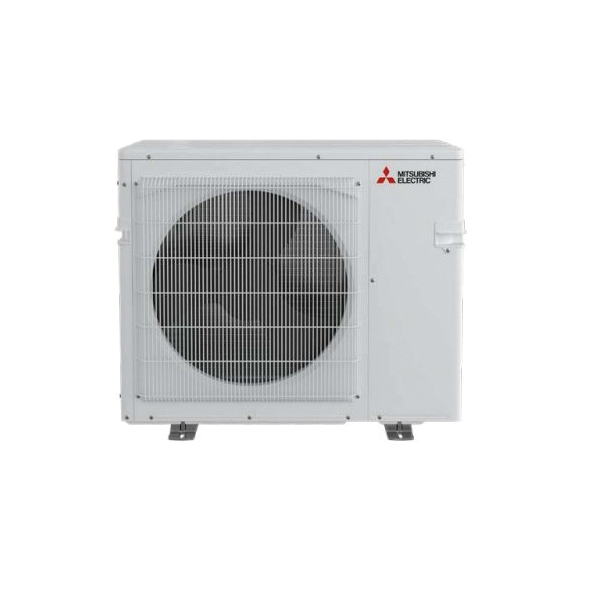

Mitsubishi Electric MXZ-3D30NLHZ Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 1.74 A, 28400 Btu/hr Cooling, 1 ph

Brand: Mitsubishi Electric

Item No: MXZ-3D30NLHZ

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 1.74 A, 2470 W Cooling, 2395 W Heating, 60 Hz, 1 ph, 28600 Btu/hr Heating, 28400 Btu/hr Cooling, 2378 cfm Heating CFM Rating, 2239 cfm Cooling CFM Rating, 11.5 EER Rating, 20 SEER, 10 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, Inverter Drive, 58 dBA Heating Sound Level, 56 dBA Cooling Sound Level, Finish: Munsell 3Y 7.8/1.1, -12 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 37-13/32 in Overall Width, 31-11/32 in Overall Height, 3-Zone

Features

  • Built-in base pan heater
  • Compressor overcurrent detection
  • Compressor thermal protection
  • Fan motor overheating/voltage protection
  • High pressure protection
  • Hyper-Heating INVERTER®: Hyper-heating performance offers 100% heating capacity at 5 deg F and 75% heating capacity at -13 deg F
  • INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point
  • Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet
  • Seacoast protection: Seacoast protection on heat exchanger and base panel (rated for 2,000 hrs. in accordance with ASTM B117 testing)
  • Thermal Differential 1 deg F

    • Specifications

    Additional Information

    		3-Zone

    Amperage Rating

    		1.74 A

    Compressor Type

    		Twin Rotary

    Connection Type

    		Flared

    Cooling BTU Rating

    		28400 Btu/hr

    Cooling CFM Rating

    		2239 cfm

    Cooling Operating Temperature

    		14 to 115 deg F

    Cooling Sound Level

    		56 dBA

    Drive Type

    		Inverter

    EER Rating

    		11.5

    Finish

    		Munsell 3Y 7.8/1.1

    Frequency Rating

    		60 Hz

    HSPF Rating

    		10

    Heating BTU Rating

    		28600 Btu/hr

    Heating CFM Rating

    		2378 cfm

    Heating Operating Temperature

    		-12 to 75 deg F

    Heating Sound Level

    		58 dBA

    Liquid Line Size

    		1/4 in

    Model

    		MXZ

    Overall Height

    		31-11/32 in

    Overall Length

    		13 in

    Overall Width

    		37-13/32 in

    Phase

    		1 ph

    Power Rating

    		2470 W Cooling, 2395 W Heating

    Refrigerant Type

    		R-454B

    SEER Rating

    		20

    Suction Line Size

    		1/2 in, 3/8 in

    Voltage Rating

    		208/230 V
