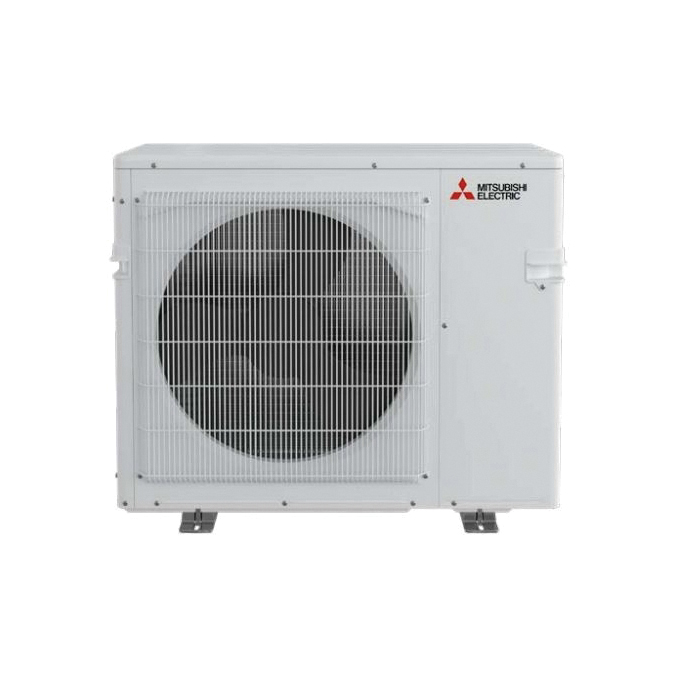

Mitsubishi Electric MXZ-4D30NL MXZ-4D30NL

Mitsubishi Electric MXZ-4D30NL

Mitsubishi Electric MXZ-4D30NL Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 1.74 A, 28600 Btu/hr Cooling, 1 ph

Brand: Mitsubishi Electric

Item No: MXZ-4D30NL

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 1.74 A, 2200 W Cooling, 2149 W Heating, 60 Hz, 1 ph, 28600 Btu/hr Heating, 28600 Btu/hr Cooling, 2228 cfm Heating CFM Rating, 2119 cfm Cooling CFM Rating, 13 EER Rating, 21 SEER, 10 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, Inverter Drive, 56 dBA Heating Sound Level, 53 dBA Cooling Sound Level, Finish: Munsell 3Y 7.8/1.1, 6 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 37-13/32 in Overall Width, 31-11/32 in Overall Height, 4-Zone

Features

  • Compact, small chassis
  • Compressor overcurrent detection
  • Compressor thermal protection
  • Fan motor overheating/voltage protection
  • Freeze-prevention base pan heater equipped as standard
  • High-pressure protection
  • Prolonged heating over an extended duration
  • Quiet outdoor unit operation as low as 52 dB(A)
  • Rated for 2,000 hours spraying time per ASTM B117 Standard
  • Variable speed INVERTER-driven compressor
  • Blue Fin anti-corrosion treatment applied to the outdoor unit heat exchanger for increased coil protection and longer life

    • Specifications

    Additional Information

    		4-Zone

    Amperage Rating

    		1.74 A

    Compressor Type

    		Twin Rotary

    Connection Type

    		Flared

    Cooling BTU Rating

    		28600 Btu/hr

    Cooling CFM Rating

    		2119 cfm

    Cooling Operating Temperature

    		14 to 115 deg F

    Cooling Sound Level

    		53 dBA

    Drive Type

    		Inverter

    EER Rating

    		13

    Finish

    		Munsell 3Y 7.8/1.1

    Frequency Rating

    		60 Hz

    HSPF Rating

    		10

    Heating BTU Rating

    		28600 Btu/hr

    Heating CFM Rating

    		2228 cfm

    Heating Operating Temperature

    		6 to 75 deg F

    Heating Sound Level

    		56 dBA

    Liquid Line Size

    		1/4 in

    Model

    		MXZ

    Overall Height

    		31-11/32 in

    Overall Length

    		13 in

    Overall Width

    		37-13/32 in

    Phase

    		1 ph

    Power Rating

    		2200 W Cooling, 2149 W Heating

    Refrigerant Type

    		R-454B

    SEER Rating

    		21

    Suction Line Size

    		1/2 in, 3/8 in

    Voltage Rating

    		208/230 V
