Mitsubishi Electric MXZ-SM36NL MXZ-SM36NL

Mitsubishi Electric MXZ-SM36NL

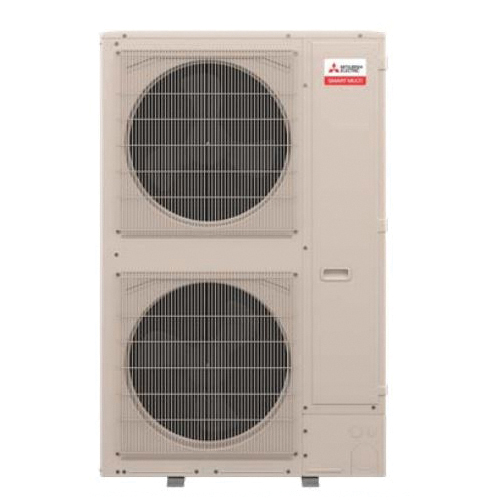

Mitsubishi Electric MXZ-SM36NL Multi-Zone Heat Pump Outdoor Unit, 208/230 V, A, 36000 Btu/hr Cooling, 1 ph

Brand: Mitsubishi Electric

Item No: MXZ-SM36NL

Sign In for Availability
loading
Add To Cart

Email Print

Description

Mitsubishi Electric Multi-Zone Heat Pump Outdoor Unit, 208/230 V, 2555 W Cooling, 3005 W Heating, 60 Hz, 1 ph, 45000 Btu/hr Heating, 36000 Btu/hr Cooling, 14.1 EER Rating, 23 SEER, 11 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, 40 A Fuse Rating, Inverter Drive, 53 dBA Heating Sound Level, 49 dBA Cooling Sound Level, Finish: Munsell 3Y 7.8/1.1, -13 to 70 deg F Heating Operating Temperature, 23 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 41-11/32 in Overall Width, 52-11/16 in Overall Height

Features

  • Compatible with M- and P-Series and CITY MULTI® indoor units (branch box required for connection with M- and P-Series)
  • Compressor overcurrent detection
  • Compressor thermal protection
  • Fan motor overheating/voltage protection
  • High pressure protection
  • INVERTER-driven compressor: Compressor generates the precise capacity needed to maintain a temperature set point
  • Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet
  • Seacoast protection: Seacoast protection on heat exchanger and base panel (rated for 2,000 hrs. in accordance with ASTM B117 testing)
  • Thermal Differential 1 deg F

    • Specifications

    Compressor Type

    		Twin Rotary

    Connection Type

    		Flared

    Cooling BTU Rating

    		36000 Btu/hr

    Cooling Operating Temperature

    		23 to 115 deg F

    Cooling Sound Level

    		49 dBA

    Drive Type

    		Inverter

    EER Rating

    		14.1

    Finish

    		Munsell 3Y 7.8/1.1

    Frequency Rating

    		60 Hz

    Fuse Rating

    		40 A

    HSPF Rating

    		11

    Heating BTU Rating

    		45000 Btu/hr

    Heating Operating Temperature

    		-13 to 70 deg F

    Heating Sound Level

    		53 dBA

    Liquid Line Size

    		3/8 in

    Overall Height

    		52-11/16 in

    Overall Length

    		13 in

    Overall Width

    		41-11/32 in

    Phase

    		1 ph

    Power Rating

    		2555 W Cooling, 3005 W Heating

    Refrigerant Type

    		R-454B

    SEER Rating

    		23

    Suction Line Size

    		5/8 in

    Voltage Rating

    		208/230 V
