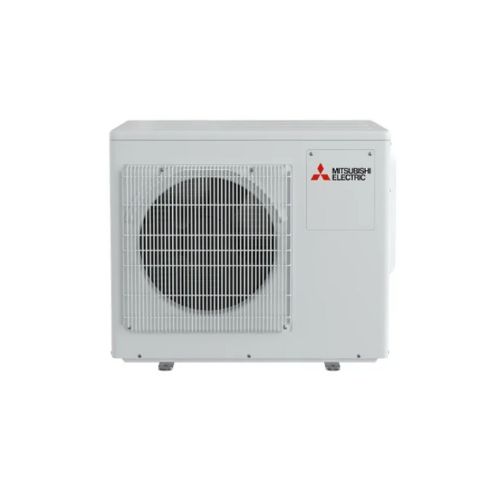

Mitsubishi Electric MXZ-2C20NA3-U1
Mitsubishi Electric MXZ-2C20NA3-U1 Multi-Split Air Source Heat Pump System, 208/230 V, 17.2 A, 20000 Btu/hr Cooling
Brand: Mitsubishi Electric
Item No: MXZ2C20NA3-U1
Sign In for Availability
Description
Mitsubishi Electric Multi‐Split Air Source Heat Pump System, 208/230 V, 17.2 A, 2000 W, 60 Hz, 1 ph, 22000 Btu/hr Heating BTU Rating, 20000 Btu/hr Cooling BTU Rating, 1458 cfm Heating CFM Rating, 1342 cfm Cooling CFM Rating, 10 EER, 16 SEER, HSPF: 9.3, Flared, Inverter Compressor, 1/4 in Liquid Line, 20 A Fuse, 54 dBA Heating Sound Level, 50 dBA Cooling Sound Level, Munsell, 5 to 65 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 33‐1/16 in Overall Width, 27‐15/16 in Overall Height, Additional Information: 13 in Depth
Features
- Variable speed Inverter
- M‐NET connection optional through outdoor unit
- Quiet outdoor unit operation as low as 50 dBA
- High pressure switch for additional protection
Specifications
|
Additional Information |
13 in Depth |
|
Amperage Rating |
17.2 A |
|
Color |
Munsell |
|
Compressor Type |
Inverter |
|
Connection Type |
Flared |
|
Cooling BTU Rating |
20000 Btu/hr |
|
Cooling CFM Rating |
1342 cfm |
|
Cooling Operating Temperature |
14 to 115 deg F |
|
Cooling Sound Level |
50 dBA |
|
EER Rating |
10 |
|
Frequency Rating |
60 Hz |
|
Fuse Rating |
20 A |
|
HSPF Rating |
9.3 |
|
Heating BTU Rating |
22000 Btu/hr |
|
Heating CFM Rating |
1458 cfm |
|
Heating Operating Temperature |
5 to 65 deg F |
|
Heating Sound Level |
54 dBA |
|
Liquid Line Size |
1/4 in |
|
Overall Height |
27���15/16 in |
|
Overall Width |
33���1/16 in |
|
Phase |
1 ph |
|
Power Rating |
2000 W |
|
SEER Rating |
16 |
|
Voltage Rating |
208/230 V |
