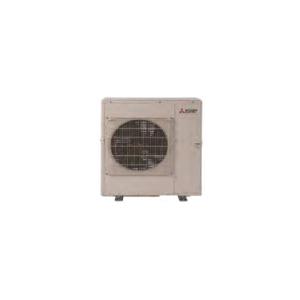

Mitsubishi Electric MXZ-5C42NA3-U1
Mitsubishi Electric MXZ-5C42NA3-U1 Air Source Heat Pump System, 208/230 V, 1 ph -Phase
Brand: Mitsubishi Electric
Item No: MXZ5C42NA3-U1
Sign In for Availability
Description
Mitsubishi Electric Air Source Heat Pump System, 208/230 V, 60 Hz, 1 ph, Heating CFM Rating: 2550 cfm, Cooling CFM Rating: 2150 cfm, 9.2 Non-Ducted, 9 Ducted, 9.1 Mixed EER, 19.7 Non-Ducted, 17.45 Mixed, 15.2 Ducted SEER Rating, 10.3 Non-Ducted, 9.7 Mixed, 9.1 Ducted HSPF Rating, FV50S, 40 A, Munsell, Heating Operating Temperature: 5 to 65 deg F, Cooling Operating Temperature: 14 to 115 deg F, 13 in OAL, 37‐13/32 in OAW, 41‐17/64 in OAH
Features
- Variable speed INVERTER‐driven compressor
- Quiet outdoor unit operation as low as 56 dB(A)
- High pressure switch for additional protection
Specifications
|
Color |
Munsell |
|
Cooling CFM Rating |
2150 cfm |
|
Cooling Operating Temperature |
14 to 115 deg F |
|
EER Rating |
9.2 Non-Ducted, 9 Ducted, 9.1 Mixed |
|
Frequency Rating |
60 Hz |
|
Fuse Rating |
40 A |
|
HSPF Rating |
10.3 Non-Ducted, 9.7 Mixed, 9.1 Ducted |
|
Heating CFM Rating |
2550 cfm |
|
Heating Operating Temperature |
5 to 65 deg F |
|
Overall Height |
41���17/64 in |
|
Overall Length |
13 in |
|
Overall Width |
37���13/32 in |
|
Phase |
1 ph |
|
Refrigerant Type |
FV50S |
|
SEER Rating |
19.7 Non-Ducted, 17.45 Mixed, 15.2 Ducted |
|
Voltage Rating |
208/230 V |
