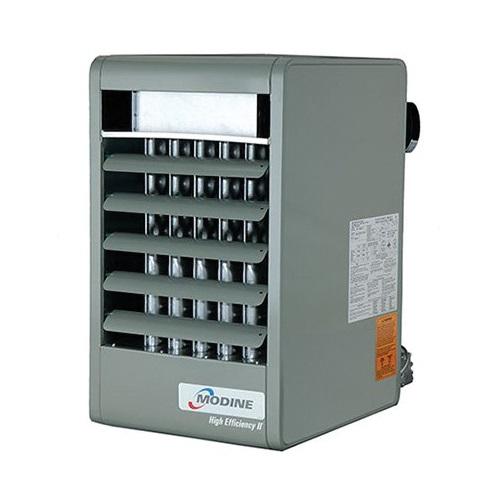

MODINE PDP350AE0130SBAN

Description

The perfect way to efficiently heat an ample space such as a large pole barn or a commercial or industrial warehouse. Easy to use and time tested for quality and durability. The PDP model series expands on the size range of the Hot Dawg Series. Our commercial-grade power vent unit heaters come with either a propeller fan or centrifugal blower fan in seven different sizes.

MODINE Power Vented Gas Fired Unit Heater, Model: 350, 350000 Btu/hr, 115 V, 11.15 A, 4870 cfm CFM Rating, 3/4 hp HP Rating, 1 ph, 60 Hz, NPT, 1/2 in, Natural Gas, 83 % Efficiency, PSC Motor, 1125 rpm Rotational Speed, Intermittent Pilot Ignition, Direct Drive, 1 Stage, 20 ft Mounting Height, 70 ft Heat Throw, Steel, Aluminized, 50 deg F, 40-1/4 in H x 33-5/8 in W x 34-11/16 in D, Domestic

Features

• Made in the USA
• 83% thermal efficiency, maximizing seasonal efficiency through the use of a collector box and the power exhauster
• A power exhaust can rotate 180 deg allowing the unit to be vented vertically or horizontally
• A 100% shut-off if the unit does not light, to ensure that unburned gases do not build-up in the unit
• An intermittent pilot ignition system with continuous retry to keep the unit from locking and needing to be rest if the unit does not light on the first try
• All PDP units to be field converted from natural gas to propane if desired
• A safety pressure switch monitors the vent pipe to assure flue gases leave the building and do not back up in the space
• Designed to utilize the smallest diameter vent pipe possible
• "Wing" screws so that the bottom pan can be dropped without a screwdriver or nut driver
• A level hanging mechanism for easy field adjustments after adding accessories that may change the unit's center of gravity
