MSA 3015-8004

Description

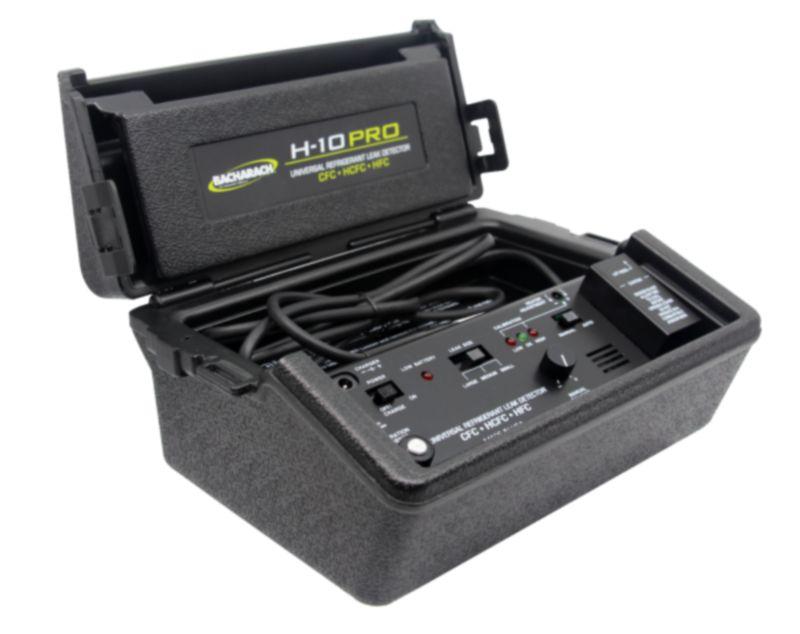

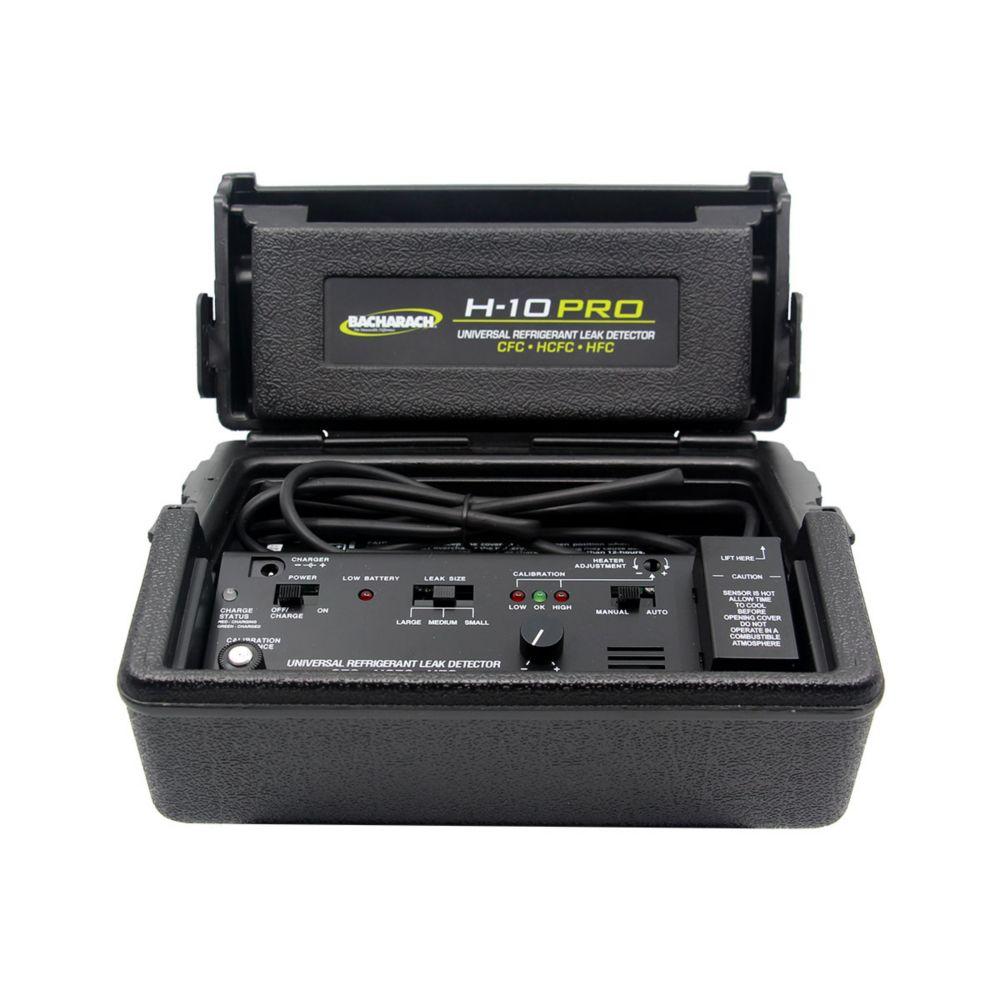

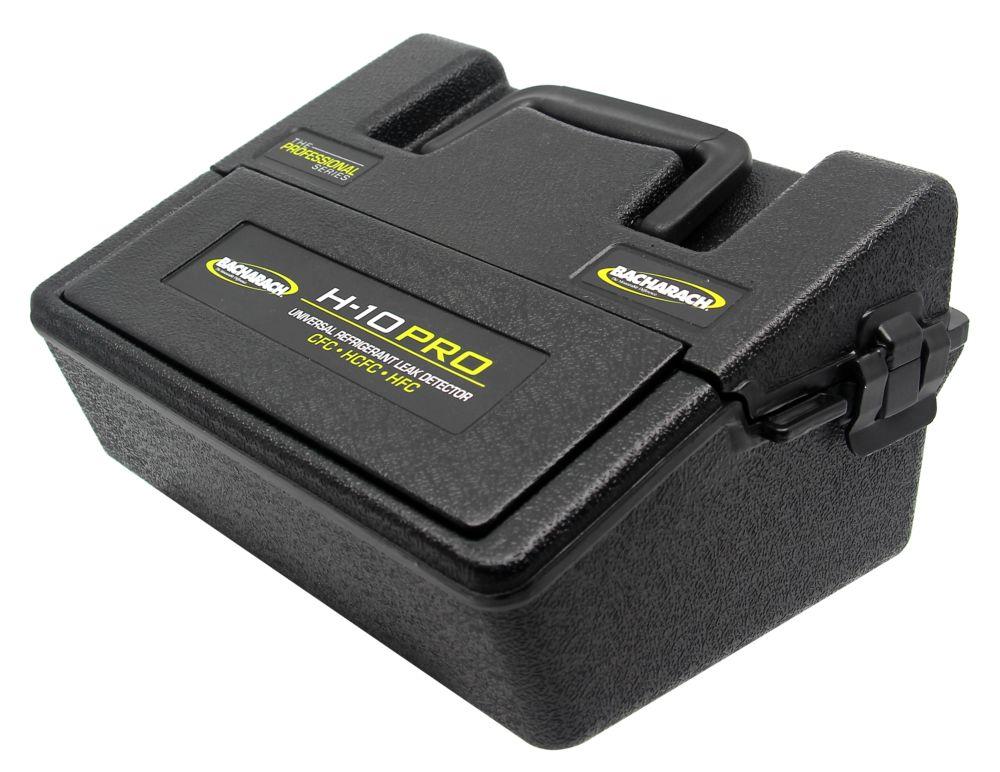

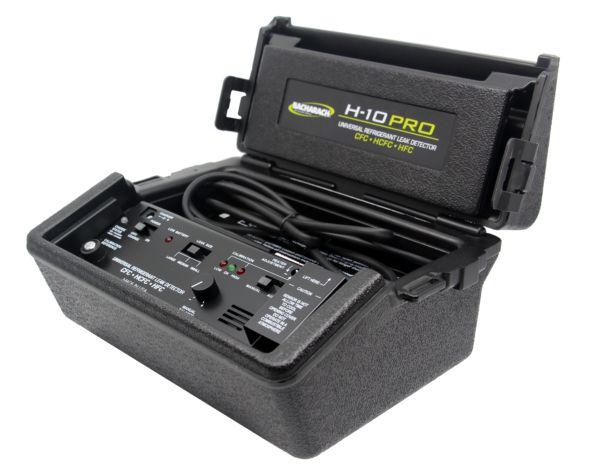

The H-10 Pro refrigerant leak detector is a highly responsive universal refrigerant leak detector using Bacharach's tried and true heated diode sensor technology. It's ultra-sensitive to all halogen-based, non-flammable CFC, HFC and HCFC refrigerants for reliable use in a wide range of refrigerant leak detection applications. In fact, it's the AC leak detector that technicians trust. The H-10 Pro has a long probe (4.5 ft) for detecting leaks in hard to reach areas, visual and audible indicators to show relative leak sizes and an auto-zeroing feature (automatic mode only) for finding leaks in backgrounds where target gas is present. It has an internal sensor calibration reference to ensure optimum performance.

The MSA Bacharach® H-10 PRO is a highly responsive universal refrigerant leak detector
using Bacharach’s tried-and-true heated diode sensor technology. It’s ultra-sensitive to all
halogen-based, non-flammable CFC, HFC and HCFC refrigerants for reliable use in a wide
range of refrigerant leak detection applications.
The H-10 PRO has a long probe (4.5 ft./1.4 m) for detecting leaks in hard-to-reach areas,
visual and audible indicators to show relative leak sizes and an auto-zeroing feature
(automatic mode only) for finding leaks in backgrounds where target gas is present. It has
an internal sensor calibration reference to ensure optimum performance and comes with a
3 year warranty.

MSA H-10 Pro has the ability to detect A2Ls.

Features

• Detects all CFC, HFC and HCFC refrigerants as low as 0.006 oz/year, including R410A and R-507
• Dual power options allow battery operation for the best mobility or wall power for uninterrupted usage
• Visual and audible indicators include an incremental flashing LED in the probe tip, an internal speaker and a headphone jack

Specifications
