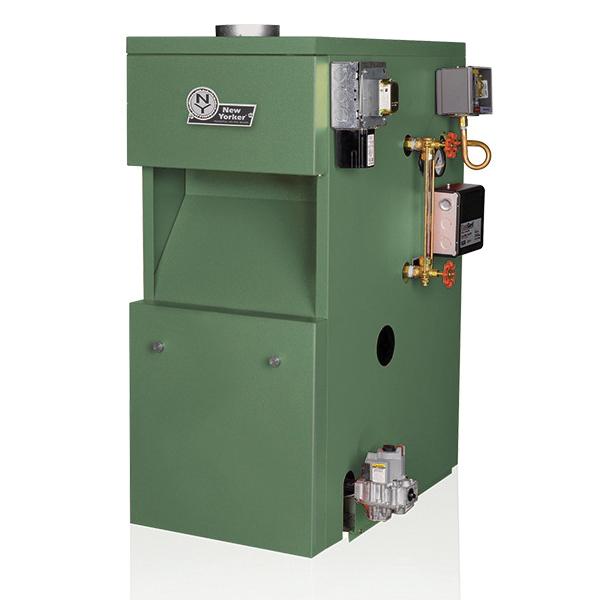

New Yorker® CGS60CNI-H
New Yorker® CGS-C Series CGS60C CGS60CNI-H Efficient Gas Fired Steam Boiler, 82.2 % AFUE, 172 mbh BTU, 9.3 gal Capacity
Brand: New Yorker®
Item No: CGS60CNI-H
Sign In for Availability
Description
New Yorker® Efficient Gas Fired Steam Boiler, Series CGS-C Series, Model: CGS60C, AFUE Rating: 82.2 %, 172 mbh BTU, 9.3 gal Capacity, 15 psi Pressure, NPT Connection, Natural Gas Fuel, DOE Heating Capacity: 142 mbh, Flue Diameter: 6 in, Electronic Ignition, Net BTU Rating: 107 mbh, Number of Sections: 6, 446 sq-ft Area, Cast Iron, 40.438 in H x 22.5 in W x 28 in D, Domestic/Import: Domestic, 1/2 in Gas, 6 in Dia x 15 ft H Chimney
Features
- Built-in draft diverter fits in low spaces
- Stainless steel burner
- Cast iron heat exchanger meets the ASME boiler and pressure vessel code
- Metal section connector-resist chemicals, increases the life of the boiler
- Fully assembled
Specifications
|
AFUE Rating |
82.2 % |
|
Additional Information |
1/2 in Gas, 6 in Dia x 15 ft H Chimney |
|
Area |
446 sq-ft |
|
BTU Rating |
172 mbh |
|
Capacity |
9.3 gal |
|
Connection Type |
NPT |
|
DOE Heating Capacity |
142 mbh |
|
Dimensions |
40.438 in H x 22.5 in W x 28 in D |
|
Domestic/Import |
Domestic |
|
Flue Diameter |
6 in |
|
Fuel Type |
Natural Gas |
|
Ignition Type |
Electronic |
|
Material |
Cast Iron |
|
Model |
CGS60C |
|
Net BTU Rating |
107 mbh |
|
Number of Sections |
6 |
|
Pressure Rating |
15 psi |
|
Series |
CGS-C Series |
