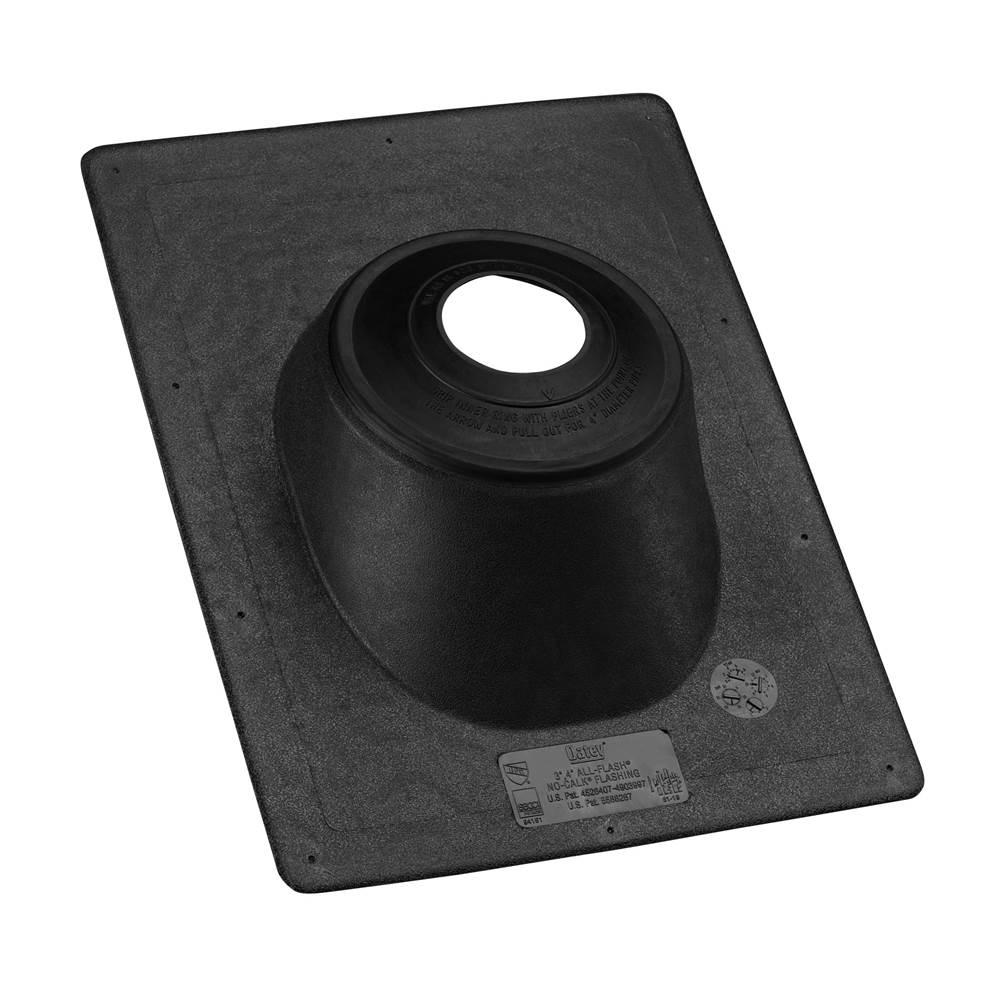

Oatey® All-Flash® No-Calk® 11920 Roof Flashing, 12 in L Base, 16 in W Base, Plastic, Type B Installation
Brand: Oatey®
Item No: 11920
Sign In for Availability
Description
Oatey® All-Flash® No-Calk® roof flashings can be used in commercial and residential applications where a watertight seal for roof penetrations around the plumbing vent pipe is required. The patented collar design allows for use on multiple pipe sizes. Oatey products have earned the trust of plumbing professionals for over 100 years.
Oatey® All-Flash® No-Calk® Roof Flashing, 12 in Base Length, 16 in Base Width, Plastic, Roof Pitch: 0 to 45 deg, 180 deg F, Installation: Type B, Fits Vent Pipe Size: 3 to 4 in
Features
- 3 to 4 in thermoplastic roof flashing
- 12 x 16 in non-fading, non-cracking plastic base
- Patented All-Flash® collar with tear away ring for many pipe sizes
- Self-sealing collar slides over pipe and requires no caulking
- Rated to withstand 180 deg F continuous heat and approved for type B installations
- Plastic base for pitch from 0 to 45 deg F
- For commercial or residential use
- Do not use petroleum based products or paint on flashing collar or plastic base
- Not for hot-mopped or built-up roofs
Specifications
|
Base Length |
12 in |
|
Base Width |
16 in |
|
Fits Vent Pipe Size |
3 to 4 in |
|
Installation Type |
Type B |
|
Material |
Plastic |
|
Overall Height |
3.5 in |
|
Overall Width |
11.7 in |
|
Roof Pitch |
0 to 45 deg |
|
Temperature Rating |
180 deg F |
