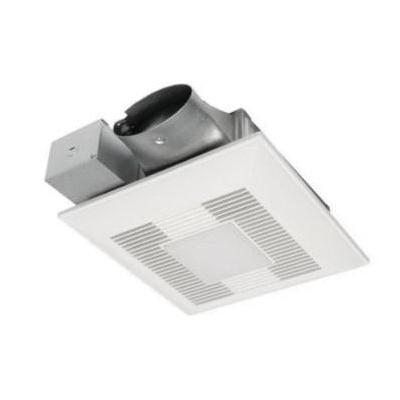

Panasonic FV-0510VSL1
Panasonic WhisperValue® DC™ FV-0510VSL1 Ventilation Fan/Light, 120 VAC, 0.13 A, 26 ga Steel, Galvanized
Brand: Panasonic
Item No: FV-0510VSL1
Sign In for Availability
Description
WhisperValue DC fan/LED light is the lowest profile energy star® rated ventilation fan available. Ideal for residential construction (single, multi-family) and Manufactured Homes. It features Panasonic's revolutionary ECM motor with SmartFlow optimum CFM technology, and incorporates a Pick-A-Flow speed selector switch to customize airflow (50, 80 or 100 CFM).
Panasonic WhisperValue® DC™ Ventilation Fan/Light, 120 VAC, 0.13 A, 60 Hz, 26 ga Steel, Galvanized, Ceiling Mount, 10-1/4 in Length, 10-1/4 in Width, 13 in L x 13 in W Grille, 80 cfm, 4 in Duct, Motor Specifications: ECM Motor, 856 rev/min at 0.1 in-WG, 1114 rev/min at 0.25 in-WG Speed Rating
Features
- Revolutionary ECM motor with SmartFlow technology for optimum cu-ft/min output
- Low profile 3-3/8 in D fits virtually anywhere, including 2 x 4 construction
Specifications
|
Amperage Rating |
0.13 A |
|
CFM Rating |
80 cfm |
|
Duct Size |
4 in |
|
Finish |
Galvanized |
|
Frequency Rating |
60 Hz |
|
Grille Size |
13 in L x 13 in W |
|
Length |
10-1/4 in |
|
Material |
26 ga Steel |
|
Motor Specifications |
ECM Motor |
|
Mounting Type |
Ceiling |
|
Speed Rating |
856 rev/min at 0.1 in-WG, 1114 rev/min at 0.25 in-WG |
|
Voltage Rating |
120 VAC |
|
Width |
10-1/4 in |
