Parker® 771302

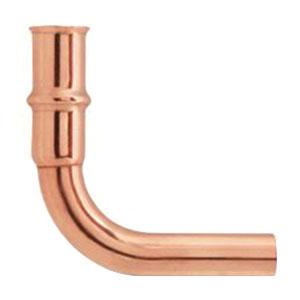

Parker® PZK-90SE6-HNBR Series 771302 Street Elbow, 3/8 in, Copper
Brand: Parker®
Item No: PZK-90SE6-HNBR
Sign In for Availability
Description
Parker ZoomLock braze free fittings are specially designed to join copper piping without the use of a brazing torch. The one piece fittings are reliably secure, leak proof and more repeatable than brazed connections. Professionals who use ZoomLock braze free fittings report time and labor savings of 40 - 60% as compared to brazing.
Parker® Street Elbow, PZK-90SE6-HNBR Series, 90 deg Elbow Fitting, 3/8 in Connection Size 1, Copper, Material Construction: Copper, 0.54 in Tube OD, 2.05 in L, 700 psi, -40 to 300 deg F, Additional Information: 0.39 in ID
Features
- Less equipment and no gas needed
- Safer conditions, no fire hazards
- No hot work permits required
- More environmentally friendly
- No solder related quality issues
- No need to nitrogen-purge
- 1 in insertion depth
- 20 um vacuum pressure
- HNBR (hydrogenated nitrile butadiene rubber) o-ring
Specifications
|
Additional Information |
0.39 in ID |
|
Connection Size 1 |
3/8 in |
|
Dimensions |
2.05 in L |
|
Fitting Type |
90 deg Elbow |
|
Material Construction |
Copper |
|
Material |
Copper |
|
Pressure Rating |
700 psi |
|
Series |
PZK-90SE6-HNBR Series |
|
Temperature Rating |
-40 to 300 deg F |
|
Tube OD |
0.54 in |
