ProLine™ SERIES 110-125
ProLine™ SERIES 110-125 Gas Valve, 1 x 1 in, FIP, Brass, 200 psi
Brand: ProLine™ SERIES
Item No: 110-125HC
Sign In for Availability
Description

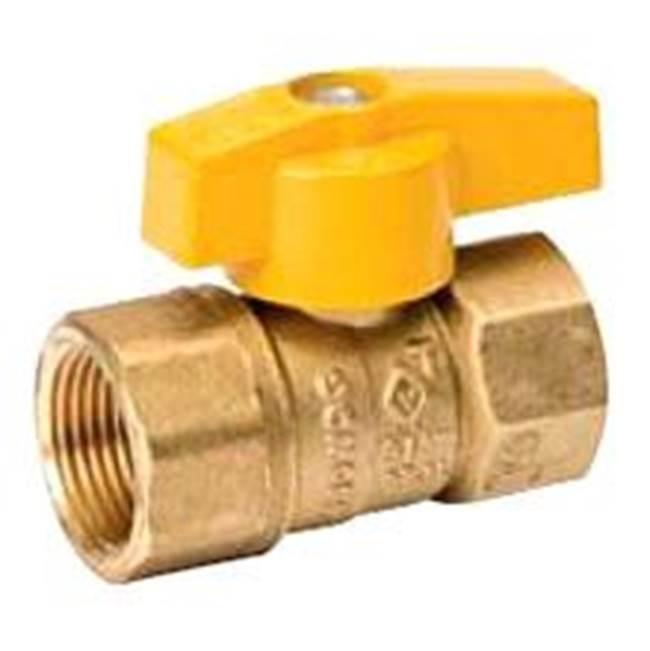

The two-piece gas ball valve by ProLine Series is safe for use with LP gas, natural gas, oil and traditional plumbing uses. This valve is built from forged brass and has a chrome-plated brass ball and is built to be installed in-line for quality flow control. The yellow handle calls out that this valve is part of a gas line and allows easy 1/4-turn operation.
ProLine™ SERIES Gas Valve, 1 x 1 in, FIP Connection, 200 psi Pressure, Lever Handle Actuator, Inlet to Outlet Length: 2.88 in, Number of Handles: 1, Brass Body, Chrome-Plated
Features
- Quarter turn lever handle for positive on/off operation
- Coated aluminum handle for corrosion and solvent resistance
- Multi-directional flow
- Two-piece body design
- Chrome-plated brass ball
Specifications
|
Actuator Type |
Lever Handle |
|
Ball Material |
Chrome Brass |
|
Body Material |
Brass |
|
Connection Type |
FIP |
|
Finish |
Chrome-Plated |
|
Handle Material |
Corrosion/Solvent-Resistant Aluminum |
|
Inlet to Outlet Length |
2.88 in |
|
Nominal Size |
1 x 1 in |
|
Number of Handles |
1 |
|
Pressure Rating |
200 psi |
|
Temperature Rating |
-20 to 300 deg F |
