ProLine™ SERIES 107-401

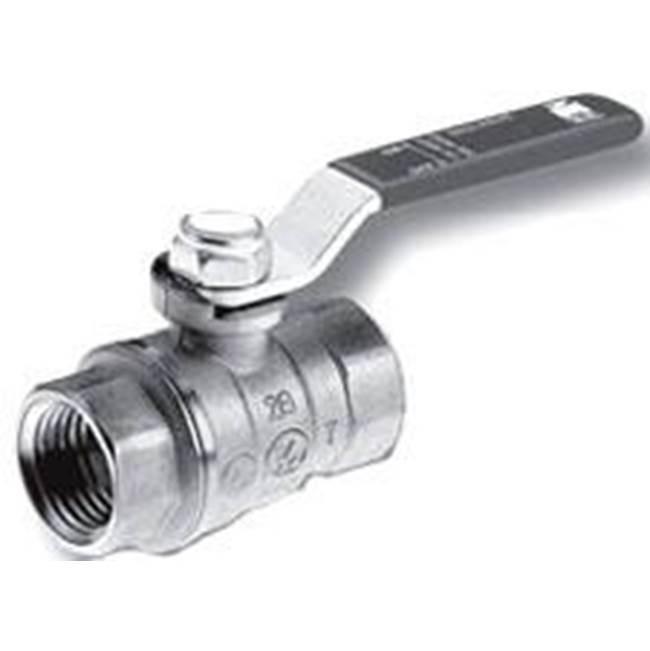

ProLine™ SERIES 7710T Series 107-401 Ball Valve, 1/4 x 1/4 in, FIP, Brass, 600 psi
Brand: ProLine™ SERIES
Item No: K14BVT
Sign In for Availability
Description
The 7710T Series ball valve is perfect when looking for a flow control option and is made to work in standard commercial and residential systems using water, oil, gas or steam. Designed to allow maximum flow rate with a full port and easy operation with the lever handle, this valve will be a durable and long-lasting solution to your flow control needs.
ProLine™ SERIES Ball Valve, 7710T Series, 1/4 x 1/4 in, FIP Connection, Full Port, 600 psi Pressure, Lever Handle Actuator, Inlet to Outlet Length: 1.7 in, Number of Handles: 1, Brass Body, Seat Material: PTFE, PTFE Seal
Features
- Full port for maximum flow rate
- Double FKM O-ring, maintenance-free blowout-proof stem design
- Internal and external anti-friction stem washers
- Corrosion-resistant steel handle
Specifications
|
Actuator Type |
Lever Handle |
|
Body Material |
Brass |
|
Connection Type |
FIP |
|
Inlet to Outlet Length |
1.7 in |
|
Nominal Size |
1/4 x 1/4 in |
|
Number of Handles |
1 |
|
Port Type |
Full |
|
Pressure Rating |
600 psi |
|
Seal Material |
PTFE |
|
Seat Material |
PTFE |
|
Series |
7710T Series |
|
Temperature Rating |
-40 to 350 deg F |
