PROTECH™ 47-102240-02

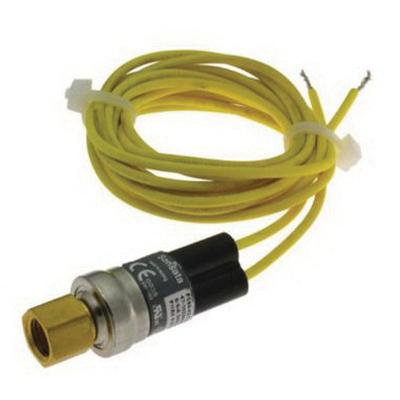

PROTECH™ 47-102240-02 Low Pressure Control, 15 lbf/sq-in Open, 40 lbf/sq-in Close, 5000 lbf/sq-in Burst Pressure
Brand: PROTECH™
Item No: 47-102240-02
Sign In for Availability
Description
PROTECH™ Low Pressure Control, 1/4 in Flared (Female SAE) without Cap Tube, 18 AWG 48 in Lead Wire Connection, 15 lbf/sq-in Open, 40 lbf/sq-in Close, 5000 lbf/sq-in Burst Pressure, 6 A at 120/230 VAC Full Load, 36 A at 120/230 VAC Locked Rotor Contact, Pilot Duty: 125 V-A at 24 VAC, 375 V-A at 120/277 VAC, 2.2 in L x 3.1 in W x 5.1 in H
Features
- 600 lbf/sq-in proof test
Specifications
|
Connection Type |
1/4 in Flared (Female SAE) without Cap Tube, 18 AWG 48 in Lead Wire |
|
Contact Rating |
6 A at 120/230 VAC Full Load, 36 A at 120/230 VAC Locked Rotor |
|
Dimensions |
2.2 in L x 3.1 in W x 5.1 in H |
|
Pilot Duty Rating |
125 V-A at 24 VAC, 375 V-A at 120/277 VAC |
|
Pressure Rating |
15 lbf/sq-in Open, 40 lbf/sq-in Close, 5000 lbf/sq-in Burst |
