PROTECH™ 51-102182-02

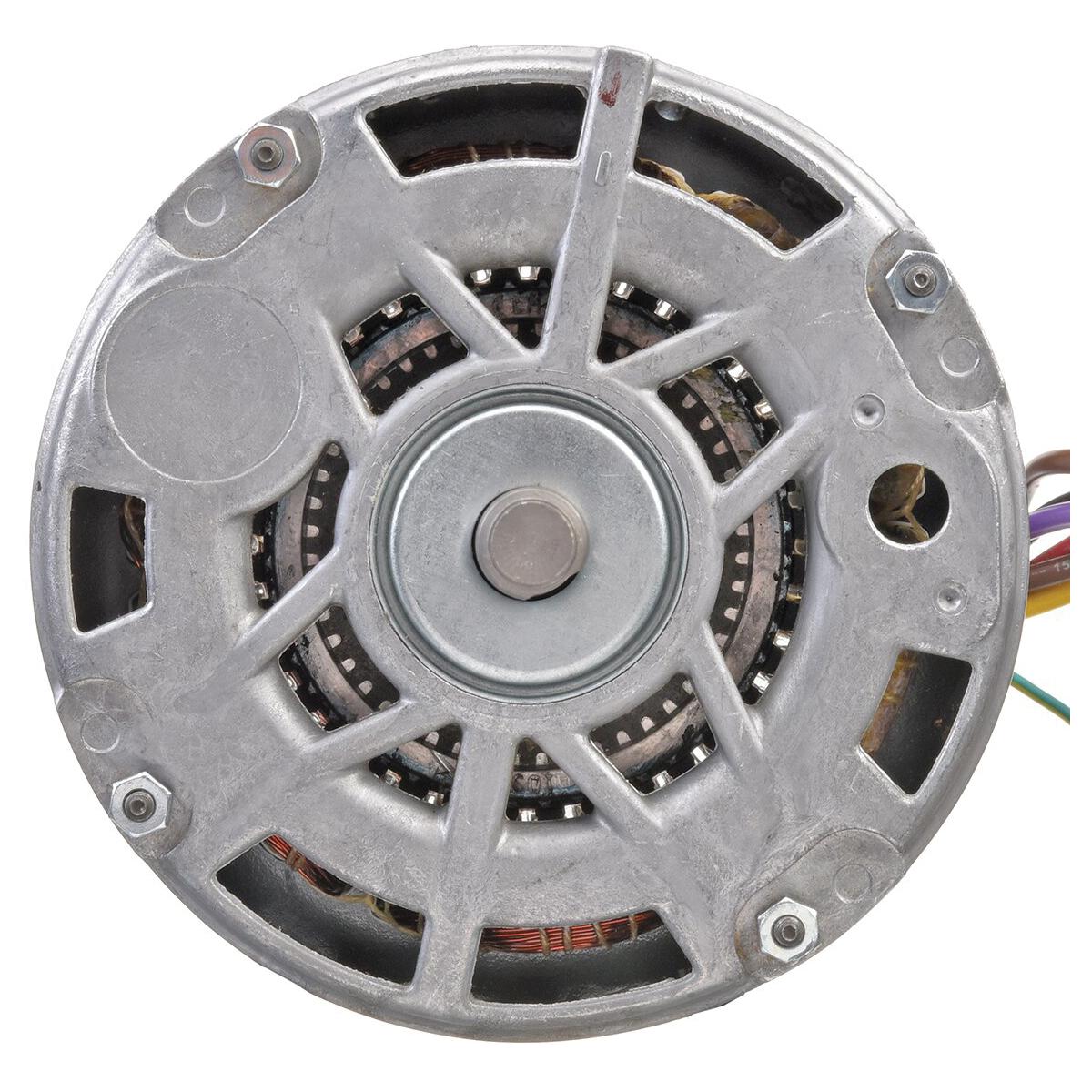

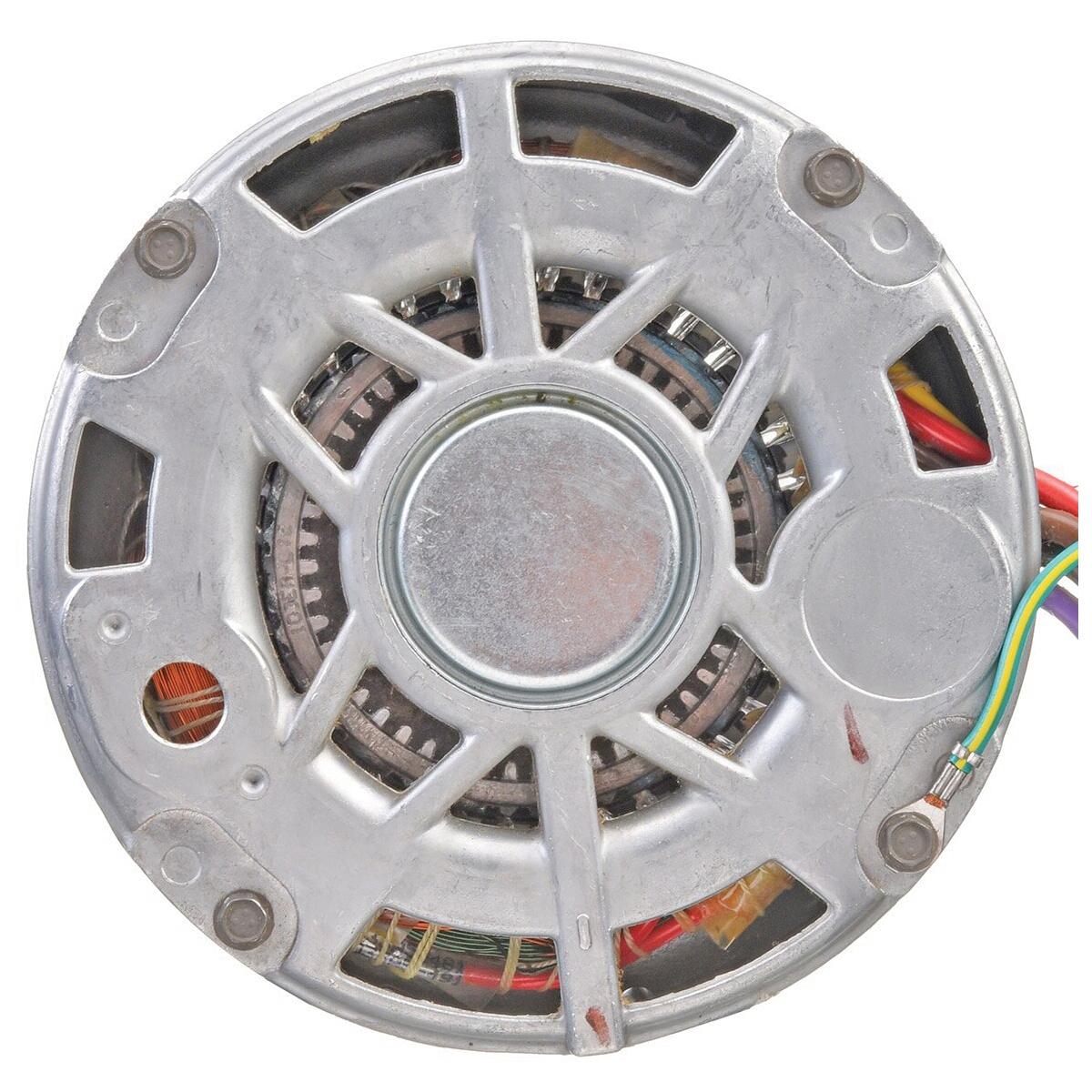

PROTECH™ 51-102182-02 Blower Motor, 1/2 hp, 460 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed
Brand: PROTECH™
Item No: 51-102182-02
Sign In for Availability
Description
PROTECH™ Blower Motor, 1/2 hp, 460 V, 1.6 A, 60 Hz, 1 ph, 1075 rpm Speed, 2 Speed, Frame: 48, 1/2 in Dia x 4-1/4 in L Shaft, Sleeve, Shell Band Mount, 5-5/8 in OAW, 9-1/2 in OAD, Direct Drive, Counter-Clockwise Rotation, 5-1/4 in Motor Body Length
Specifications
|
Additional Information |
Direct Drive, Counter-Clockwise Rotation, 5-1/4 in Motor Body Length |
|
Amperage Rating |
1.6 A |
|
Bearing Type |
Sleeve |
|
Dimensions |
5-5/8 in Dia x 9-1/2 in L |
|
Drive Type |
Direct |
|
Frame Size |
48 |
|
Frame |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/2 hp |
|
Mounting Type |
Shell Band |
|
Number of Speeds |
2 |
|
Overall Depth |
9-1/2 in |
|
Overall Width |
5-5/8 in |
|
Phase |
1 ph |
|
Rotation Type |
CCW |
|
Shaft Size |
1/2 in Dia x 4-1/4 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
460 V |
