PROTECH™ 51-102500-04

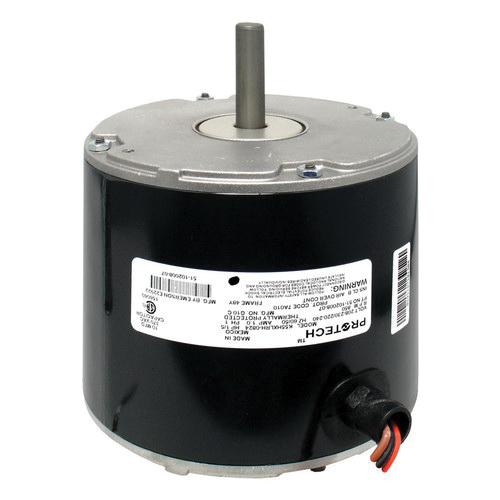

PROTECH™ 51-102500-04 Condenser Fan Motor, 208 to 230 V, 1 A Full Load, 1/5 hp, 825 rpm Speed, 1 ph -Phase, 50/60 Hz
Brand: PROTECH™
Item No: 51-102500-04
Sign In for Availability
Description
PROTECH™ Condenser Fan Motor, 208 to 230 V, 1 A Full Load, 1/5 hp, 825 rpm, 1 ph Phase, 50/60 Hz, 48 Frame, 1/2 in Dia x 1-7/8 in L Shaft, CCW Rotation, 1 Speed, Sleeve Bearing, Shell Band, End Boss Mounting, 5-5/8 in Dia x 6-11/16 in L, For Use With: RPNE, RPNL, 14AJL, RAND, RANL, 13PJL48, 13PJL60, 14PJL42, 14PJL48 Air Conditioners
Specifications
|
Amperage Rating |
1 A Full Load |
|
Bearing Type |
Sleeve |
|
Dimensions |
5-5/8 in Dia x 6-11/16 in L |
|
Frame Size |
48 |
|
Frequency Rating |
50/60 Hz |
|
HP Rating |
1/5 hp |
|
Mounting Type |
Shell Band, End Boss |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Rotation Type |
CCW |
|
Shaft Size |
1/2 in Dia x 1-7/8 in L |
|
Speed Rating |
825 rpm |
|
Suitable For Use With |
RPNE, RPNL, 14AJL, RAND, RANL, 13PJL48, 13PJL60, 14PJL42, 14PJL48 Air Conditioners |
|
Voltage Rating |
208 to 230 V |
