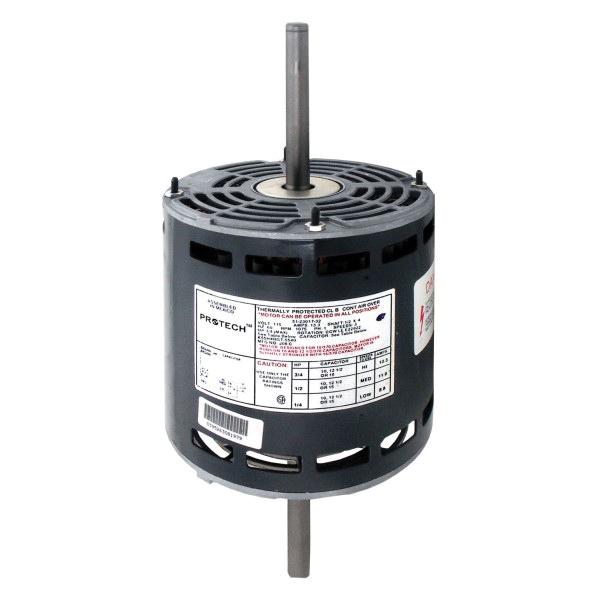

PROTECH™ 51-23017-32
PROTECH™ 51-23017-32 Blower Motor, 120 V, 13.3 A at 120 V Full Load, 3/4 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz
Brand: PROTECH™
Item No: 51-23017-32
Sign In for Availability
Description
PROTECH™ Blower Motor, 120 V, 13.3 A at 120 V Full Load, 3/4 hp, 1075 rpm, 1 ph Phase, 60 Hz, 48 Frame, 1/2 in Dia x 4 in L Shaft, Reversible Rotation, 3 Speed, Double Shaft Type, Sleeve Bearing, Shell-Band, Through-Bolt Mounting, Direct Drive, 5-5/8 in Dia x 13-13/16 in L
Features
- Capacitor 12.5 uF at 370 VAC
Specifications
|
Amperage Rating |
13.3 A at 120 V Full Load |
|
Bearing Type |
Sleeve |
|
Dimensions |
5-5/8 in Dia x 13-13/16 in L |
|
Drive Type |
Direct |
|
Frame Size |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
3/4 hp |
|
Mounting Type |
Shell-Band, Through-Bolt |
|
Number of Speeds |
3 |
|
Phase |
1 ph |
|
Rotation Type |
Reversible |
|
Shaft Size |
1/2 in Dia x 4 in L |
|
Shaft Type |
Double |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
120 V |
