PROTECH™ 51-23055-11

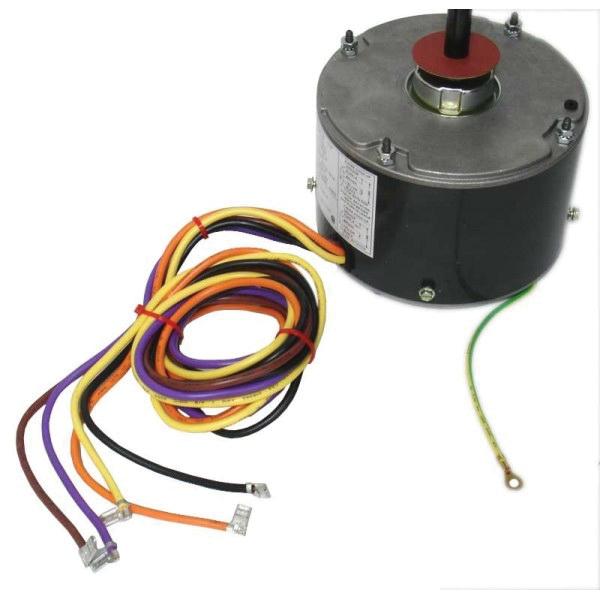

PROTECH™ 51-23055-11 Condenser Fan Motor, 208 to 230 VAC, 1.3 A, 1/5 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz, 48 Frame
Brand: PROTECH™
Item No: 51-23055-11
Sign In for Availability
Description
PROTECH™ Condenser Fan Motor, 208 to 230 VAC, 1.3 A, 1/5 hp, 1075 rpm, 1 ph Phase, 60 Hz, 48 Frame, 1/2 in Dia x 4-1/4 in L Shaft, Reversible Rotation, 1 Speed, Sleeve Bearing, Shell-Band, Through-Bolt Mounting, Direct Drive, 5-5/8 in Dia x 3-9/16 in L
Features
- Capacitor 3 uF at 370 VAC, 5 uF at 370 VAC
Specifications
|
Amperage Rating |
1.3 A |
|
Bearing Type |
Sleeve |
|
Dimensions |
5-5/8 in Dia x 3-9/16 in L |
|
Drive Type |
Direct |
|
Frame Size |
48 |
|
Frequency Rating |
60 Hz |
|
HP Rating |
1/5 hp |
|
Mounting Type |
Shell-Band, Through-Bolt |
|
Number of Speeds |
1 |
|
Phase |
1 ph |
|
Rotation Type |
Reversible |
|
Shaft Size |
1/2 in Dia x 4-1/4 in L |
|
Speed Rating |
1075 rpm |
|
Voltage Rating |
208 to 230 VAC |
