PROTECH™ 71-40427-30

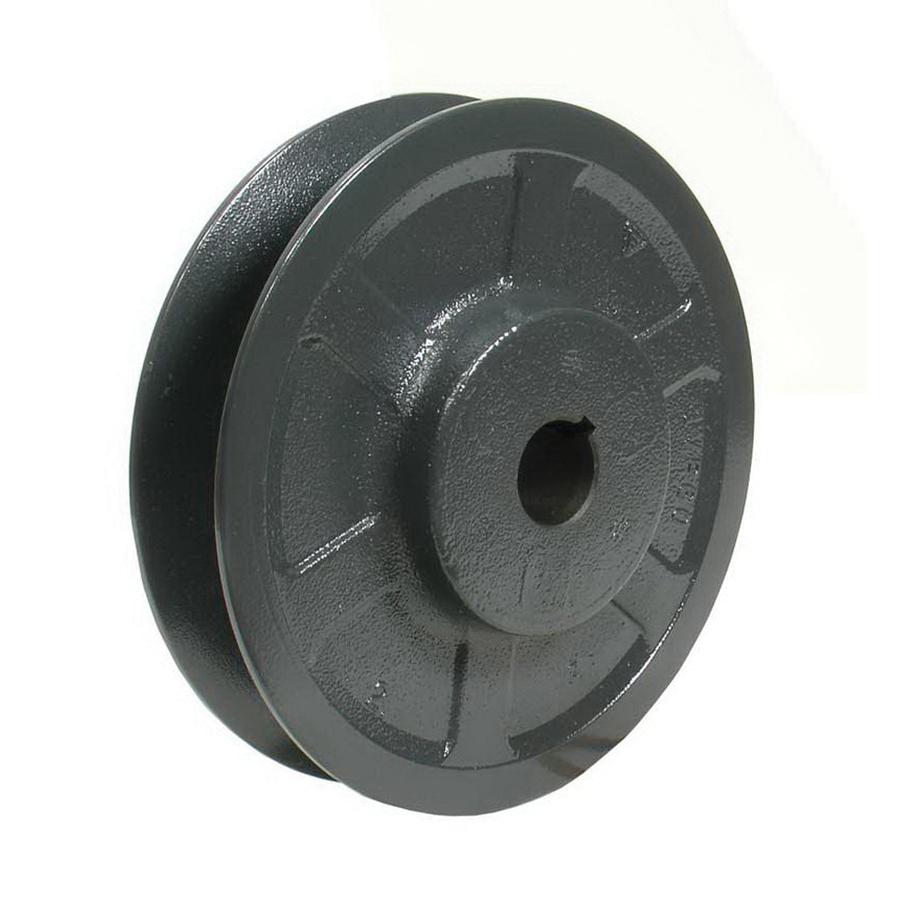

PROTECH™ 71-40427-30 Sheave, 5/8 in Dia Bore, 2.4 to 3.4 in Dia Pitch
Brand: PROTECH™
Item No: 71-40427-30
Sign In for Availability
Description
PROTECH™ Sheave, 5/8 in Bore Diameter, 4L, A, B Belt Section Size, 1.902 in L Hub, 1 Number of Grooves, 2.4 to 3.4 in Pitch Diameter, 3/16 x 3/32 in Keyway Size, 3-3/4 in OD
Specifications
|
Belt Section Size |
4L, A, B |
|
Bore Diameter |
5/8 in |
|
Dimensions |
3-3/4 in OD |
|
Hub Size |
1.902 in L |
|
Keyway Size |
3/16 x 3/32 in |
|
Number of Grooves |
1 |
|
Pitch Diameter |
2.4 to 3.4 in |
