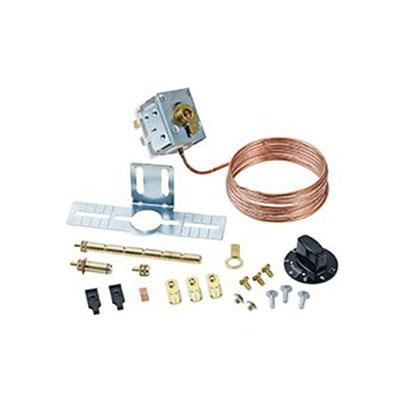

Ranco A22-391
Ranco A22 A22-391 Temperature Control, 120/240/277 VAC, Configuration: SPDT, Temperature Settings: 11 - 51 deg F
Brand: Ranco
Item No: A22-391
Sign In for Availability
Description
Ranco Temperature Control, Series: A22, 120/240/277 VAC, Configuration: SPDT, 66 in Capillary Length, 20 A Full Load, 80 A Locked Rotor at 120 VAC, 20 A Full Load, 50 A Locked Rotor at 240 VAC, 16 A Full Load, 60 A Locked Rotor at 277 VAC, 500 V-A Pilot Duty Contact, 8 deg F Differential, Temperature Settings: 11 - 51 deg F, 35 deg F Normal On, 27 deg F Normal Off, 51 deg F Warm On, 11 deg F Cold Off
Features
- Compact controls are readily adaptable to nearly all commercial refrigerators and freezers
- Controls have "off" position except as noted
Specifications
|
Capillary Length |
66 in |
|
Configuration |
SPDT |
|
Contact Rating |
20 A Full Load, 80 A Locked Rotor at 120 VAC, 20 A Full Load, 50 A Locked Rotor at 240 VAC, 16 A Full Load, 60 A Locked Rotor at 277 VAC, 500 V-A Pilot Duty |
|
Differential Temperature |
8 deg F |
|
Series |
A22 |
|
Temperature Rating |
35 deg F Normal On, 27 deg F Normal Off, 51 deg F Warm On, 11 deg F Cold Off |
|
Temperature Settings |
11 - 51 deg F |
|
Voltage Rating |
120/240/277 VAC |
