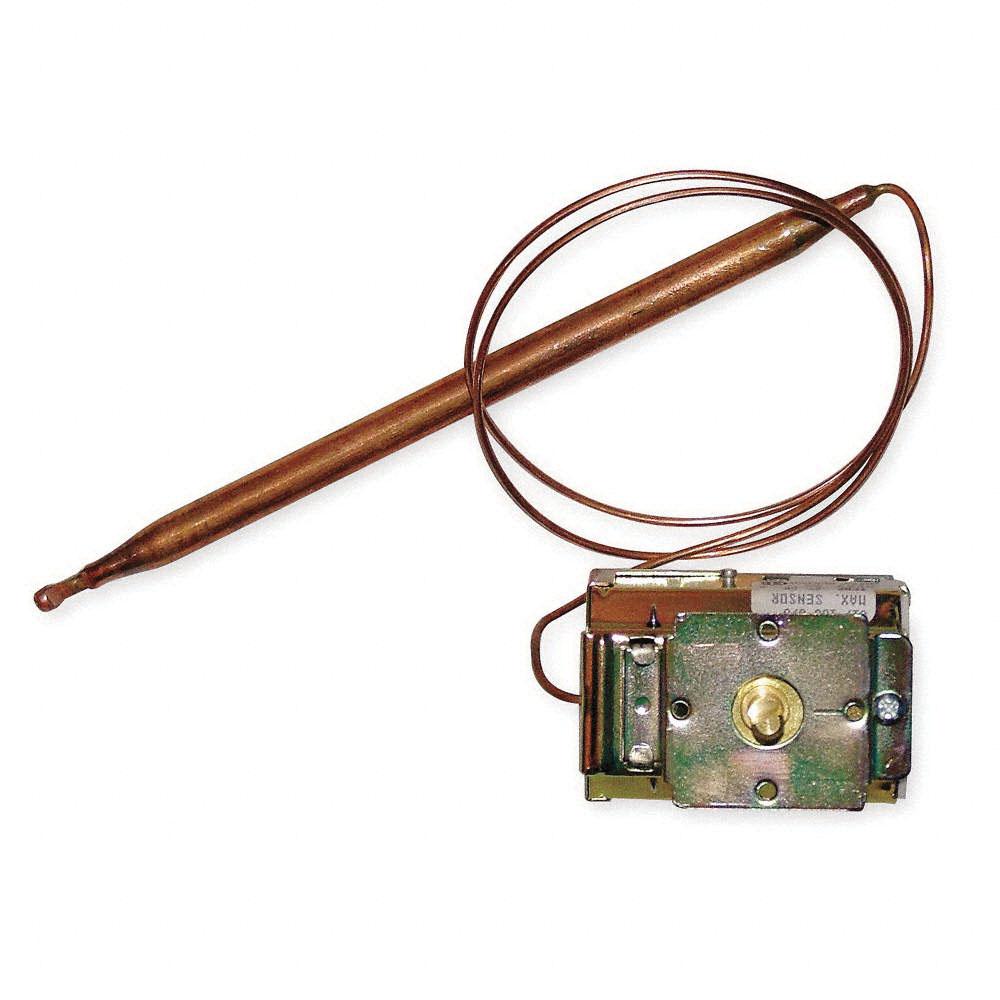

Ranco C12-5010
Ranco C12 C12-5010 Temperature Control, 120 - 277 VAC, 15 A at 120/240 VAC Full Load, Configuration: SPDT
Brand: Ranco
Item No: C12-5010
Sign In for Availability
Description
Ranco Temperature Control, Series: C12, 15 A at 120/240 VAC Full Load, 120 - 277 VAC, Copper Sensor, Configuration: SPDT, Switching Action: Open/Close on Rise, 36 in Capillary Length, Sensing Element: Bulb, 25 A Full Load, 100 A Locked Rotor at 240 VAC, 16 A Full Load, 60 A Locked Rotor, 16 A Non Inductive at 277 VAC, 240 V-A Pilot Duty Contact, 1 -Switch, 3 deg F Differential, Temperature Settings: 60 - 98 deg F, Any Position Mounting, 2-1/4 in L, 3 in H, 3 in W
Features
- Controls replace many OEM controls on single stage packaged terminal, room and thru-the-wall heat/cool units
- Line voltage mechanical thermostat
- Remote sensing capability
Specifications
|
Amperage Rating |
15 A at 120/240 VAC Full Load |
|
Capillary Length |
36 in |
|
Configuration |
SPDT |
|
Contact Rating |
25 A Full Load, 100 A Locked Rotor at 240 VAC, 16 A Full Load, 60 A Locked Rotor, 16 A Non Inductive at 277 VAC, 240 V-A Pilot Duty |
|
Differential Temperature |
3 deg F |
|
Height |
3 in |
|
Length |
2-1/4 in |
|
Mounting Type |
Any Position |
|
Number of Switches |
1 |
|
Sensing Element |
Bulb |
|
Sensor Type |
Copper |
|
Series |
C12 |
|
Switching Action |
Open/Close on Rise |
|
Temperature Settings |
60 - 98 deg F |
|
Voltage Rating |
120 - 277 VAC |
|
Width |
3 in |
