Ranco F25-107

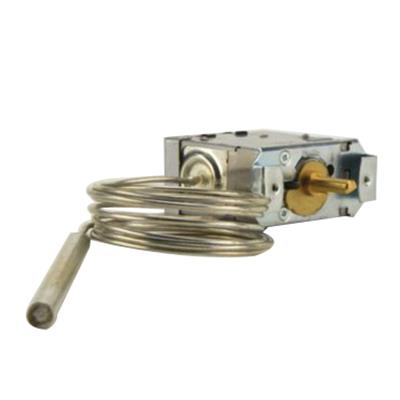

Ranco F25-107 Fan Delay Control/Defrost Termination, 120/240 VAC, SPDT Switch
Brand: Ranco
Item No: F25-107
Sign In for Availability
Description
Ranco Fan Delay Control/Defrost Termination, 120/240 VAC, SPDT Switch, 40 - 75 deg F Setting, 7 deg F Fixed Differential, 60 in Capillary Length, 20 A Full Load and 80 A Locked Rotor at 120/240 VAC, 25 A Resistive at 240 VAC, 360 V-A at 240 VAC Pilot Duty Contact, 4 in L x 3/8 in Dia Bulb
Features
- Prevents warm, moist air from being circulated into the refrigerated space
- Remote bulb sensor
- Factory fixed low event for fan delay
- Fan on 20 deg F fixed
- -7 deg F normal off, 10 deg F warm on, -19 deg F cold off
Specifications
|
Bulb Size |
4 in L x 3/8 in Dia |
|
Capillary Length |
60 in |
|
Contact Rating |
20 A Full Load and 80 A Locked Rotor at 120/240 VAC, 25 A Resistive at 240 VAC, 360 V-A at 240 VAC Pilot Duty |
|
Switch Type |
SPDT |
|
Temperature Rating |
40 - 75 deg F Setting, 7 deg F Fixed Differential |
|
Voltage Rating |
120/240 VAC |
