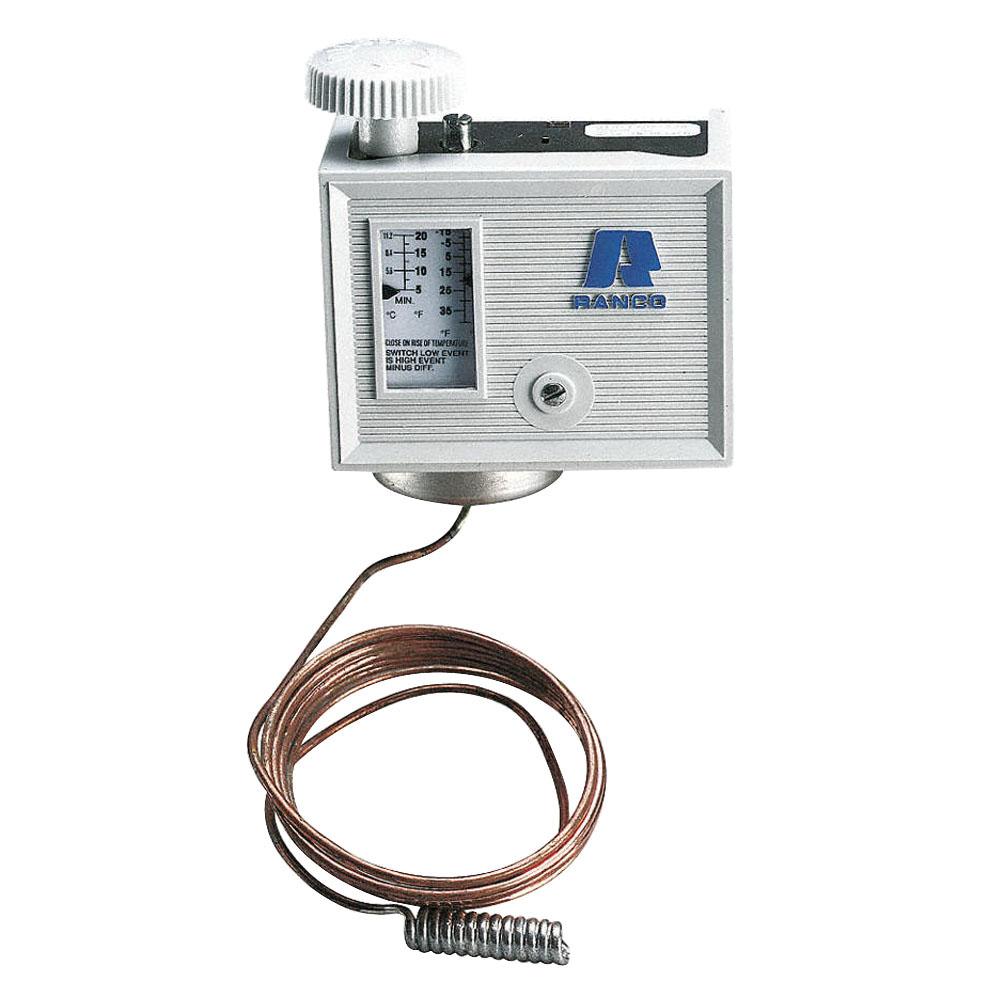

Ranco O10-1409
Ranco O O10-1409 Temperature Control, 24 V, 24 A Full Load, Configuration: SPST, Temperature Settings: -15 to 40 deg F
Brand: Ranco
Item No: O10-1409
Sign In for Availability
Description
Ranco Temperature Control, Series: O, 24 A Full Load, 24 V, Configuration: SPST, Switching Action: Close on Rise, Automatic Reset, 72 in Capillary Length, Pilot Duty: 144 V-A Contact, 3 - 20 deg F High, 6 - 25 deg F Low Differential, Temperature Settings: -15 to 40 deg F, 3-1/2 in L, 2-3/4 in H, 2 in W, NEMA 1 Enclosure
Features
- Maximum adjustment accuracy with 7 revolution range adjustment screws
- Non-conductive cover
- Front-located captive cover screw
- Large easy-to-read scale plate
- Universal-mounting and compact design
- Laser-welded bellows for extended life
- Heavy-duty plated steel frames
Specifications
|
Amperage Rating |
24 A Full Load |
|
Capillary Length |
72 in |
|
Configuration |
SPST |
|
Contact Rating |
Pilot Duty: 144 V-A |
|
Differential Temperature |
3 - 20 deg F High, 6 - 25 deg F Low |
|
Enclosure Type |
NEMA 1 |
|
Height |
2-3/4 in |
|
Length |
3-1/2 in |
|
Series |
O |
|
Switching Action |
Close on Rise, Automatic Reset |
|
Temperature Settings |
-15 to 40 deg F |
|
Voltage Rating |
24 V |
|
Width |
2 in |
