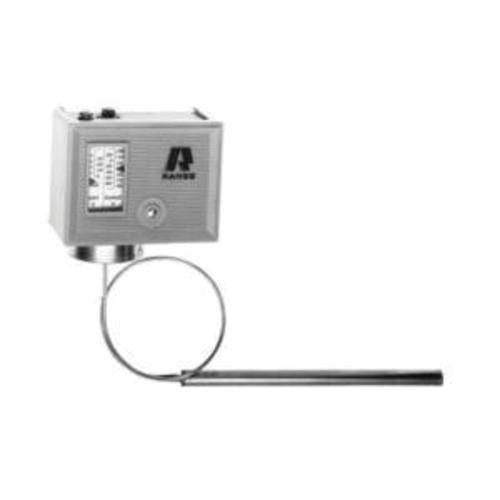

Ranco O10-1410

Description

O Series Temperature Controls The Ranco Wide Range O Series Temperature Controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers limits. The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales. Recognizing the need for flexibility in design of refrigeration equipment, these controls offer a wide selection for such products as self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases.

Ranco Refrigeration Temperature Control, Series: O, 24 A Full Load, 144 A Locked Rotor, 120 VAC, Switching Action: SPST Close on Rise/Automatic Reset, 72 in Capillary Length, 3 - 20 deg F Differential, Temperature Settings: 25 - 75 deg F, Steel, Zinc-Plated

Features

• Maximum adjustment accuracy with 7 revolution range adjustment screws
• NEMA 1 enclosure with non-conductive cover
• Universal-mounting and compact design
• Laser-welded bellows for extended life
• Wide range adjustable differential
• Capillary with 3/8 x 1-3/8 in remote bulb
• Pressed steel
• For line or pilot-duty cycling of motors, compressors or solenoid valves
