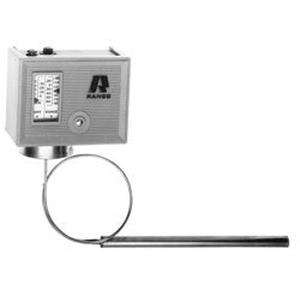

Ranco O10-1473

Description

Ranco Temperature Control, Series: O, 24/120/240 VAC, Configuration: SPST, Switching Action: Open Low, 72 in Capillary Length, 24 A Full Load and 144 A Locked Rotor at 120 VAC, 24 A Full Load and 144 A Locked Rotor at 240 VAC, 144 V-A at 24 VAC, 720 V-A at 120/240 VAC, 125 V-A at 241 - 600 VAC Pilot Duty Contact, 7 - 55 deg F Differential, Temperature Settings: 0 - 55 deg F, NEMA 1 Enclosure

Features

• The Ranco wide range O Series temperature controls provide a wide selection of controls customized to allow users exact adjustments within manufacturers' limits
• The Ranco O Series features heavy-duty plated steel frames, non-conductive covers with front-located captive cover screws, raised screw terminals for fully accessible wiring, and large easy-to-read scales
• Maximum adjustment accuracy with 7 revolution range adjustment screws
• NEMA 1 enclosure with non-conductive cover
• Universal-mounting and compact design
• Laser welded bellows for extended life
• Wide differential adjustment range
• 6 - 25 deg F differential at low end of range
