Ranco O12-1594

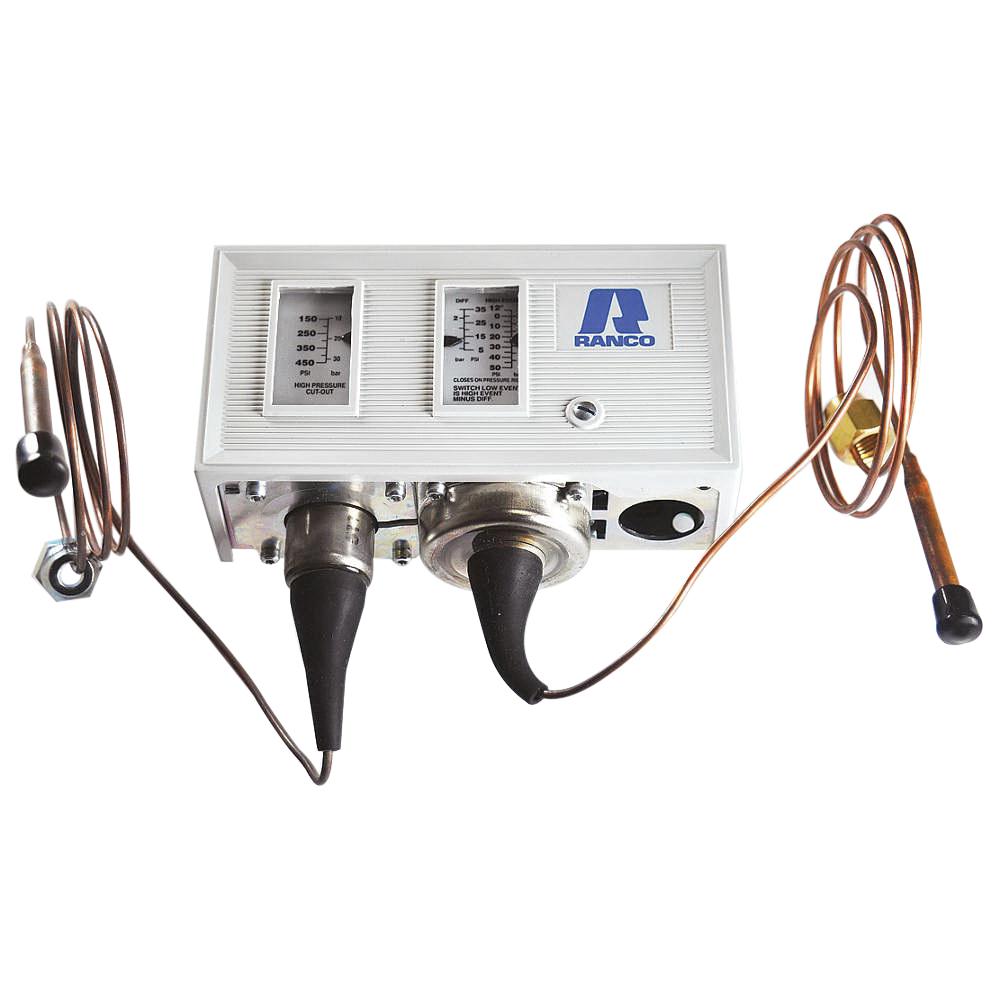

Ranco O12 O12-1594 Dual Pressure Control, 1/4 in Nominal, SAE Flare Nut Connection
Brand: Ranco
Item No: O12-1594
Sign In for Availability
Description
The Ranco dual pressure controls combine the functions of a single high-pressure limit control and a single low-pressure control in one unit with a single pole, single throw (SPST) switch.
Ranco Dual Pressure Control, Series: O12, 1/4 in Nominal, SAE Flare Nut Connection, Switching Action: SPST, 10 inHg - 100 lb/sq-in Low Cut-In, 150 - 450 lb/sq-in High Cut-Out, 10 lb/sq-in Fixed Low and 70 lb/sq-in Fixed High Differential Pressure, 36 in Capillary Length
Features
- A high-pressure limit is combined with suction pressure sensing to provide temperature control and/or pump down
- High limit adjustments screw
- Low pressure differential and range adjusting screws
- High impact plastic cover with centre-mount screw
- Super cap capillary protection system
- Color-coded for easy identification of pressure line
- Low pressure scale plate
- High pressure scale plate
- High side capillary flare nut (silver)
- Low side capillary flare nut (brass)
- NEMA 1 enclosure with non-conductive cover
- Universal-mounting and compact design
Specifications
|
Capillary Length |
36 in |
|
Connection Type |
SAE Flare Nut |
|
Nominal Size |
1/4 in |
|
Pressure Rating |
10 inHg - 100 lb/sq-in Low Cut-In, 150 - 450 lb/sq-in High Cut-Out, 10 lb/sq-in Fixed Low and 70 lb/sq-in Fixed High Differential |
|
Series |
O12 |
|
Switching Action |
SPST |
