Ranco O12-4834

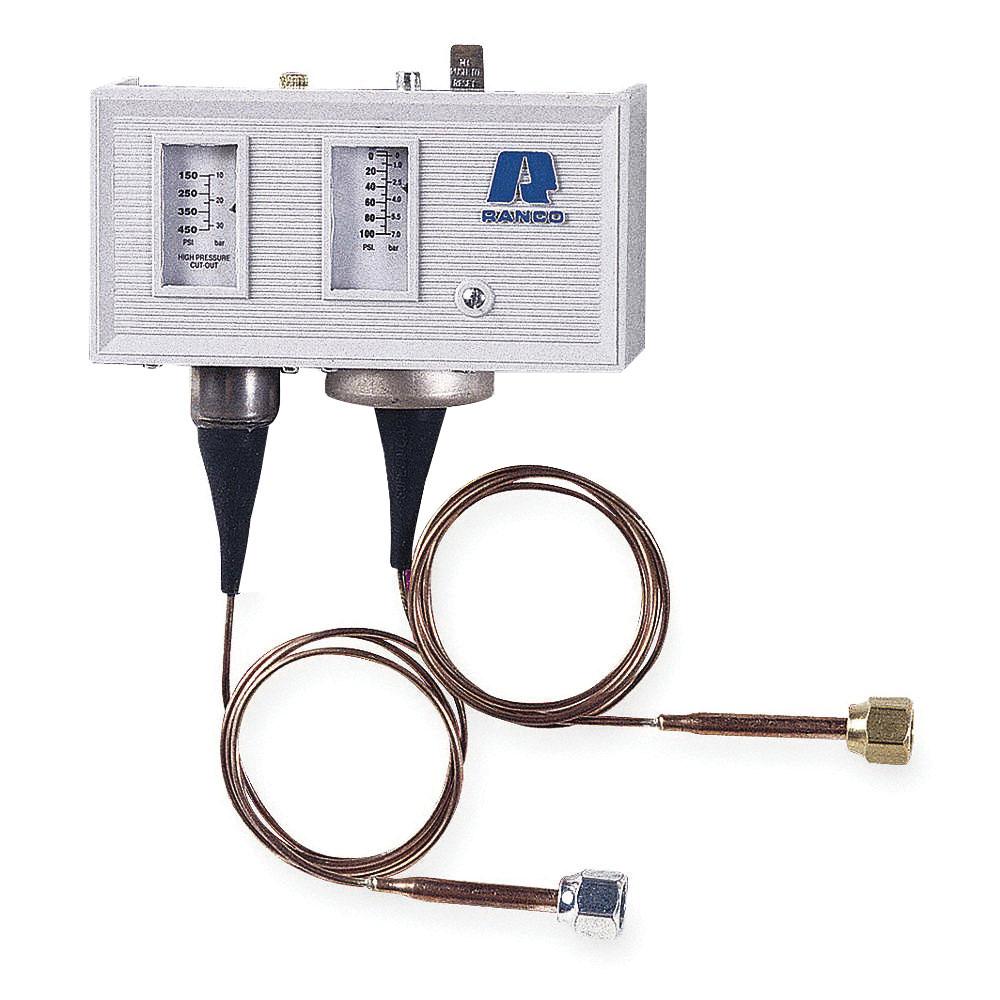

Ranco O O12-4834 Compact Dual Pressure Control, 24 - 240 V, SPST
Brand: Ranco
Item No: O12-4834
Sign In for Availability
Description
Ranco Compact Dual Pressure Control, Series: O, 24 - 240 V, SPST, 10 - 100 lbf/sq-in Low, 150 - 450 lbf/sq-in High Pressure
Features
- 48 in L capillary tubing
- 70 lbf/sq-in (high pressure differential), 10 - 40 lbf/sq-in (low pressure differential)
- Auto reset (high/low)
- Super cap capillary vibration protection system
- NEMA 1 enclosure
- High-impact plastic cover with centre-mount screw
- High-pressure limit is combined with suction pressure sensing to provide temperature control and/or pump down
- High-limit adjustment screw
- Low-pressure differential and range adjusting screws
- Low-pressure scale plate
- High-pressure scale plate
- High-side capillary flare nut (silver)
- Low-side capillary flare nut (brass)
- 1 - 110 sec main switch off time, 1 - 110 sec main switch on time
Specifications
|
Contact Configuration |
SPST |
|
Pressure Rating |
10 - 100 lbf/sq-in Low, 150 - 450 lbf/sq-in High |
|
Series |
O |
|
Voltage Rating |
24 - 240 V |
