Ranco O20-7006

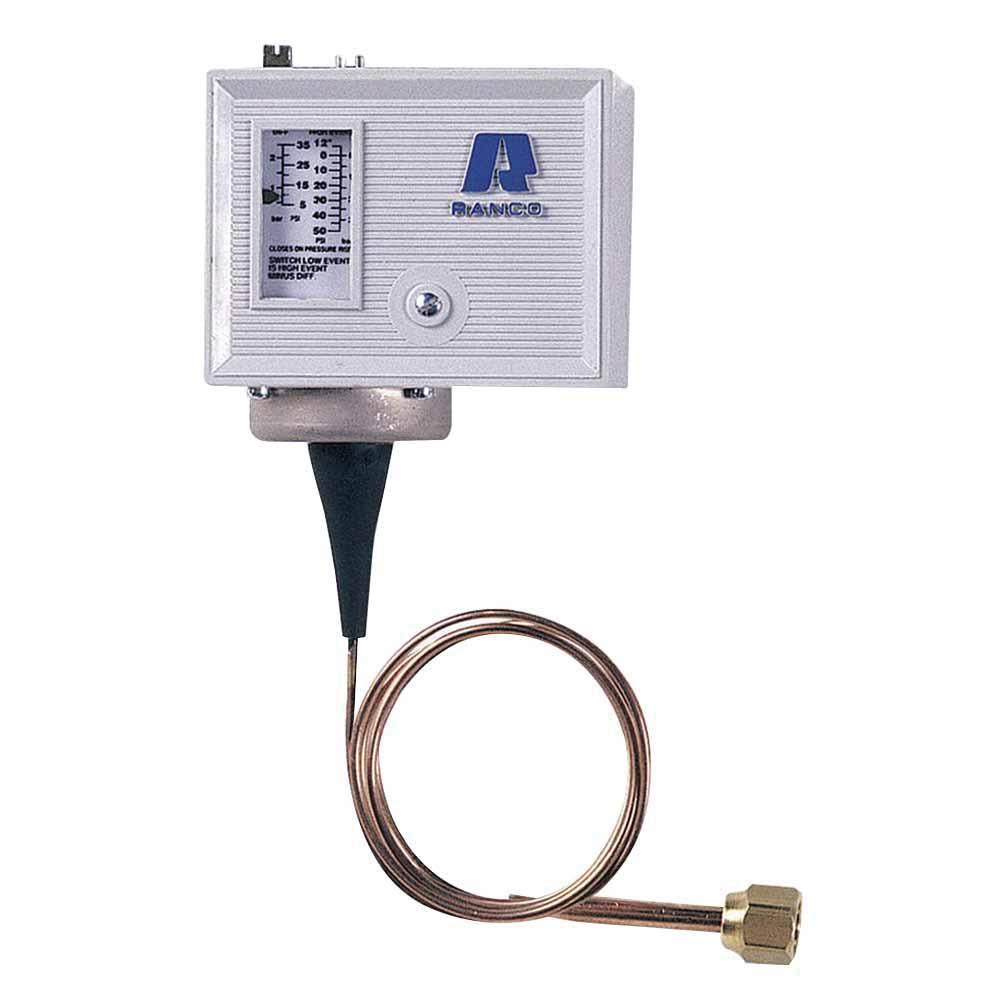

Ranco O O20-7006 High Pressure Control, 120/240 VAC, 1/4 in SAE Flared Nut Connection
Brand: Ranco
Item No: O20-7006
Sign In for Availability
Description
Ranco High Pressure Control, Series: O, 120/240 VAC, 1/4 in SAE Flared Nut Connection, Switching Action: DPST Open Low, 100 - 400 lb/sq-in, 40 - 150 psid Pressure, 4.6 A Full Load, 46 A Locked Rotor at 120 VAC, 2.3 A Full Load, 23 A Locked Rotor at 240 VAC, 57.5 V-A at 120/240/600 VAC Pilot Duty Contact, 36 in Capillary Length
Features
- High-impact NEMA 1 non-conductive plastic cover with centre-mount captive screw
- Super cap capillary vibration protection system
- Easy-to-read scale plate
- Heavy-duty plated steel frame
- Universal-mounting and compact design
- Adjustable differential
- Screw terminals are raised and fully accessible for easy wiring
- Laser welded bellows for extended life
- They are suitable for R12, R22 and R502 refrigerants
- 1 year limited warranty
Specifications
|
Capillary Length |
36 in |
|
Connection Type |
1/4 in SAE Flared Nut |
|
Contact Rating |
4.6 A Full Load, 46 A Locked Rotor at 120 VAC, 2.3 A Full Load, 23 A Locked Rotor at 240 VAC, 57.5 V-A at 120/240/600 VAC Pilot Duty |
|
Pressure Rating |
100 - 400 lb/sq-in, 40 - 150 psid |
|
Series |
O |
|
Switching Action |
DPST Open Low |
|
Voltage Rating |
120/240 VAC |
