resideo L6008A1192

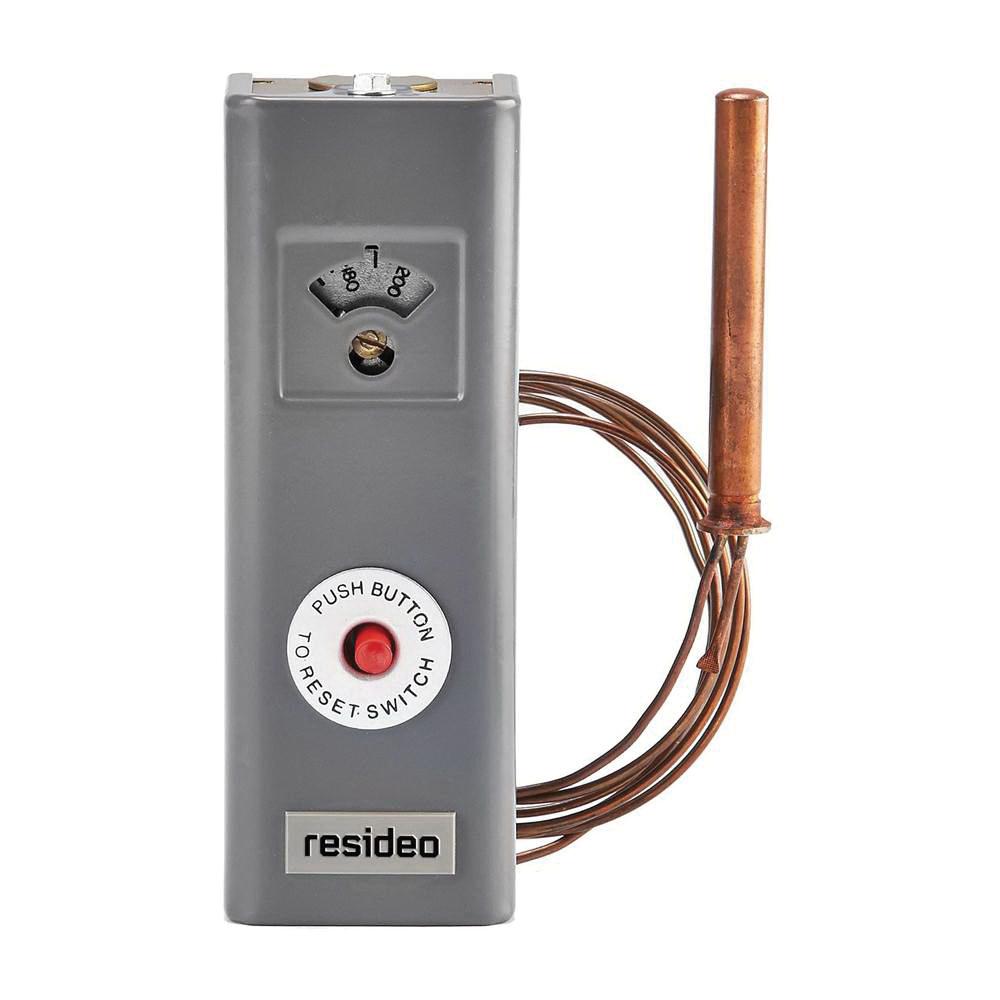

resideo L6008A1192 Low Limit Controller, Strap-On Mounting, 100 to 240 deg F, 5 to 30 deg F Differential
Brand: resideo
Item No: L6008A1192
Sign In for Availability
Description
resideo Low Limit Controller, 8 A, 120 V, Bulb Size: 3/8 in Dia x 2-7/8 in L, 66 in Length Capillary, SPDT, Strap-On Mount, 100 to 240 deg F, 5 to 30 deg F, 5-5/8 in H x 2 in W x 2-1/8 in D
Features
- Remote temperature sensing element detects and responds rapidly to temperature changes
- Totally enclosed Micro Switch™ snap-acting switch
- Visible control point scale and external adjustment screw permit easy setting
- Case mounts to a vertical surface
Specifications
|
Amperage Rating |
8 A |
|
Bulb Size |
3/8 in Dia x 2-7/8 in L |
|
Capillary Length |
66 in |
|
Differential Temperature |
5 to 30 deg F |
|
Dimensions |
5-5/8 in H x 2 in W x 2-1/8 in D |
|
Mounting Type |
Strap-On |
|
Switching Action |
SPDT |
|
Temperature Rating |
100 to 240 deg F |
|
Voltage Rating |
120 V |
