resideo PV150S/U

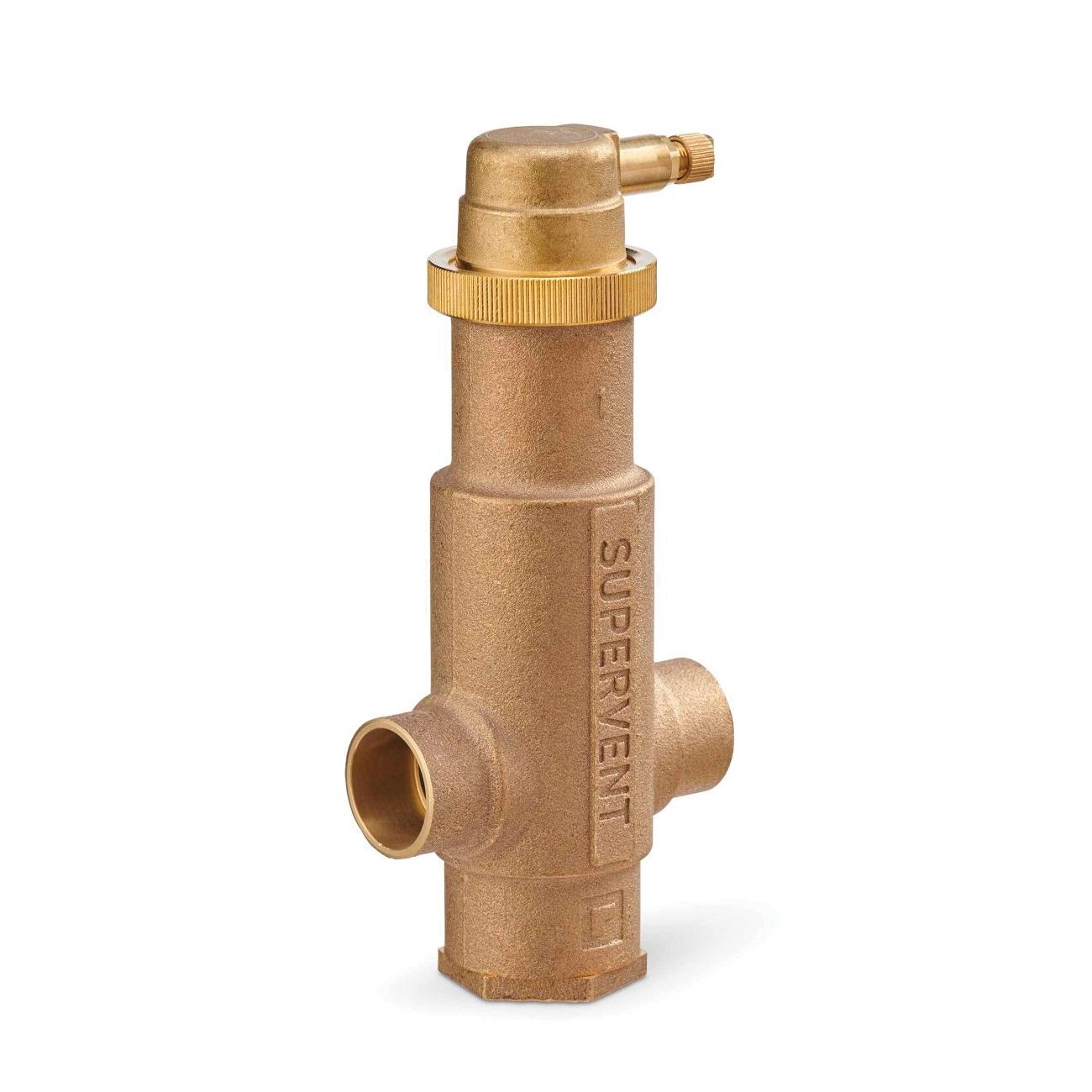

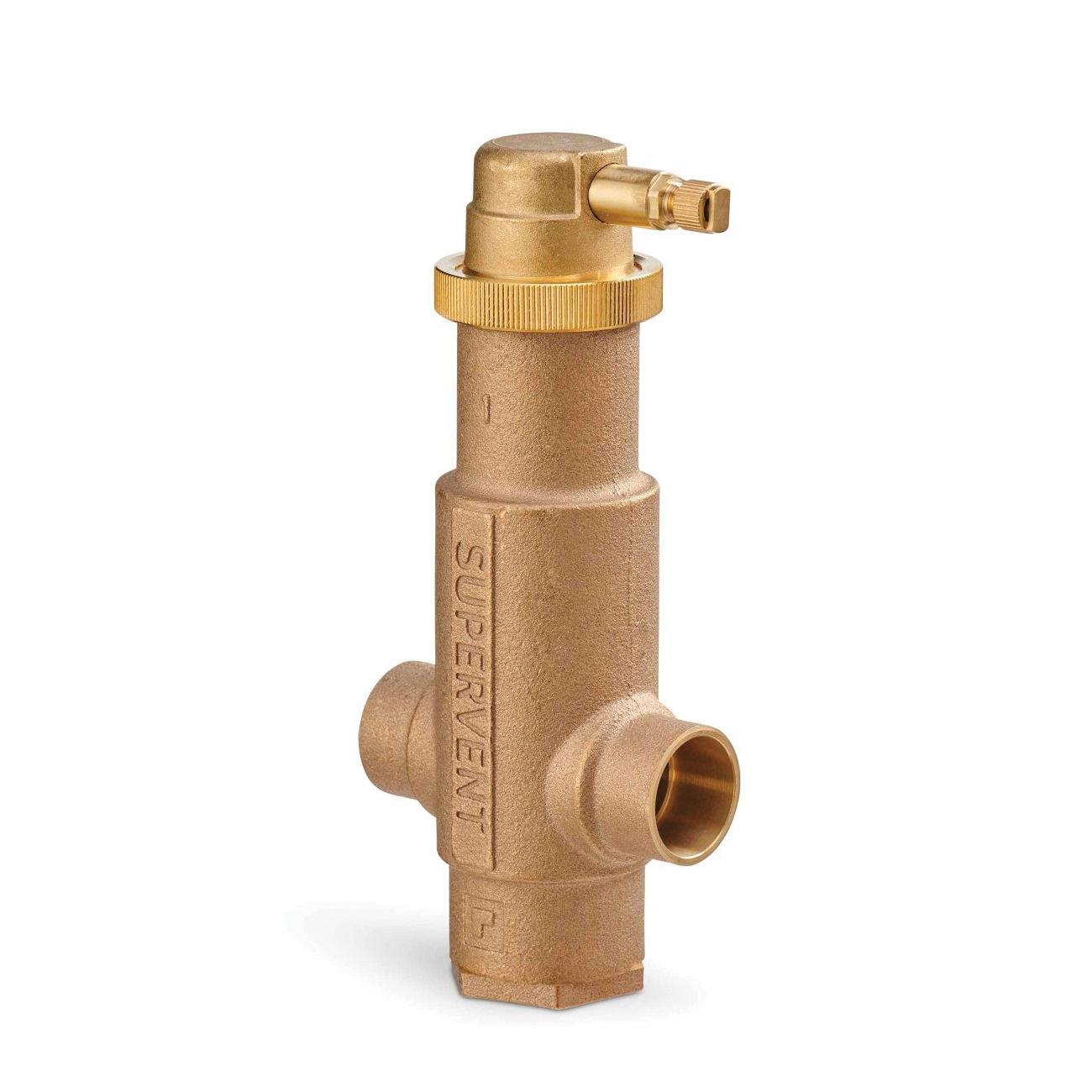

resideo SuperVent™ PV Series PV150S/U Air Eliminator, 1-1/2 in, Female Sweat, Bronze
Brand: resideo
Item No: PV150S
Sign In for Availability
Description
Clean air made easy. The Resideo PV Series SuperVent™ Air Eliminator from Resideo pushes air through a no-clog vent assembly, controlling dirt and debris. It minimizes air vent fouling in hydronic heating and cooling systems while eliminating the need for bleeding. It also ensures a fast start-up with automatic venting and helps prevent corrosion of system components.
resideo SuperVent™ Air Eliminator, PV Series, 1-1/2 in, Female Sweat Connection, 125 psi Pressure, 0 to 239 deg F, Bronze, Metallic, Service Type: Non-Potable Water, 4.31 in L x 3.1 in W x 9.16 in H, 1/2 in Bottom Connection, 53 Cv Flow Coefficient, DN40 Size, EPDM Rubber Seal, For Use With Hydronic Heating and Cooling Systems, TPX® Polymethylpentene Float
Features
- No clog vent
- Dirt and debris-resistant
- 360 deg adjustable collar ring for installation flexibility
- Stainless steel concentrator which eliminates gurgling noise
- Bronze body for rigid construction
Specifications
|
Additional Information |
1/2 in Bottom Connection, 53 Cv Flow Coefficient, DN40 Size, EPDM Rubber Seal, For Use With Hydronic Heating and Cooling Systems, TPX® Polymethylpentene Float |
|
Color |
Metallic |
|
Connection Type |
Female Sweat |
|
Dimensions |
4.31 in L x 3.1 in W x 9.16 in H |
|
Material |
Bronze |
|
Nominal Size |
1-1/2 in |
|
Pressure Rating |
125 psi |
|
Series |
PV Series |
|
Service Type |
Non-Potable Water |
|
Temperature Rating |
0 to 239 deg F |
Documentation
