resideo SV9501M8129/U

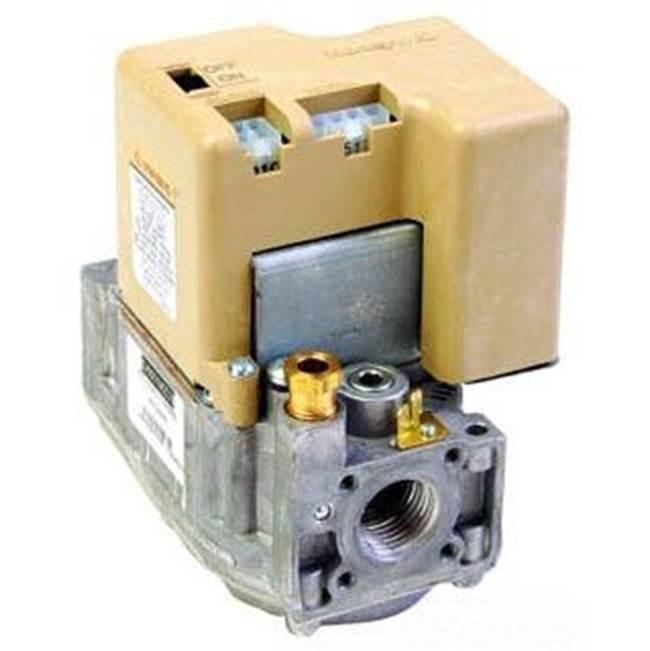

resideo SmartValve® SV9501M8129/U Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 0.6 to 5.7 cu-m/hr Nominal
Brand: resideo
Item No: SV9501M8129
Sign In for Availability
Description
The SmartValve® system controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications. The specific application of the SmartValve® system is the responsibility of the appliance manufacturer. They are directly compatible with the Q3450 or Q3480 intermittent pilot burners used with the original controls on the appliance.
resideo SmartValve® Gas Valve, 1/2 in Inlet, 1/2 in Outlet, NPT End, 0.6 to 5.7 cu-m/hr Nominal Capacity, Natural, LP Gas, Intermittent Hot Surface Pilot Ignition, 0.5 psi, -40 to 175 deg F, 24 VAC, 50/60 Hz, 4.1 in Overall Length, 3.2 in Overall Width, 4.9 in Overall Height
Features
- Suitable for a wide range of gas fired appliances including residential furnaces, roof-top furnaces, residential boilers, unit heaters, infrared heaters, space heaters and commercial cooking units
- Ignition sequence includes timed trial for ignition
Specifications
|
Connection Type |
NPT |
|
Dimensions |
4.1 in L x 3.2 in W x 4.9 in H |
|
End Type |
NPT |
|
Frequency Rating |
50/60 Hz |
|
Fuel Type |
Natural Gas |
|
Gas Type |
Natural, LP |
|
Ignition Type |
Intermittent Hot Surface Pilot |
|
Inlet Size |
1/2 in |
|
Nominal Capacity |
0.6 to 5.7 cu-m/hr |
|
Nominal Size |
1/2 in |
|
Outlet Size |
1/2 in |
|
Overall Height |
4.9 in |
|
Overall Length |
4.1 in |
|
Overall Width |
3.2 in |
|
Pressure Rating |
0.5 psi |
|
Series |
SV9501 |
|
Temperature Rating |
-40 to 175 deg F |
|
Voltage Rating |
24 VAC |
