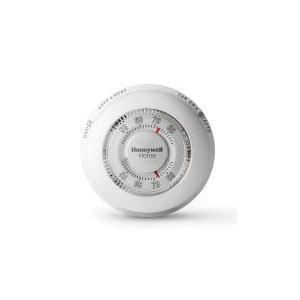

resideo T87N1000
resideo T87N1000 Low Voltage Thermostat, 20/30 VAC, Lithium Battery, 2
Brand: resideo
Item No: T87N1000
Sign In for Availability
Description
resideo Low Voltage Thermostat, 20/30 VAC, 50/60 Hz, Manual, 2 Stages, Heat-Off-Cool System, Auto-On Fan Switch Position, Relay Switch, Analog Display, 40 to 90 deg F Temperature Settings, 5 to 90 % Humidity Rating, Lithium Battery, Hardwired Connection, 0.02 to 1 A Cool Current, 1, 3, 5, 9 cph Adjustable Cycles per Hour, +/-2 deg F Accuracy, 0.02 to 1 A Heat Current, Battery, 3-11/16 in Dia x 1-3/4 in D, Premier White, For Use With: 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
Features
- The Round® thermostats provide electronic control of 24 VAC heating and cooling systems with the classic twist to set dial
- Mercury-free
- Classic-styling
- The T87K heat only works with 2 or 3 wire heat only systems
- Button cell contained in equipment, Lithium metal button cells only contained in equipment, excepted per PI970
Specifications
|
Accuracy |
+/-2 deg F |
|
Battery Type |
Lithium |
|
Changeover |
Manual |
|
Color |
Premier White |
|
Connection Type |
Hardwired |
|
Cool Current |
0.02 to 1 A |
|
Cycles per Hour |
1, 3, 5, 9 cph Adjustable |
|
Dimensions |
3-11/16 in Dia x 1-3/4 in D |
|
Display Type |
Analog |
|
Frequency Rating |
50/60 Hz |
|
Heat Current |
0.02 to 1 A |
|
Humidity Rating |
5 to 90 % |
|
Power Source |
Battery |
|
Stages |
2 |
|
Suitable For Use With |
1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat |
|
Switch Position |
Heat-Off-Cool System, Auto-On Fan |
|
Switch Type |
Relay |
|
Temperature Settings |
40 to 90 deg F |
|
Voltage Rating |
20/30 VAC |
