resideo TH3110D1008/U

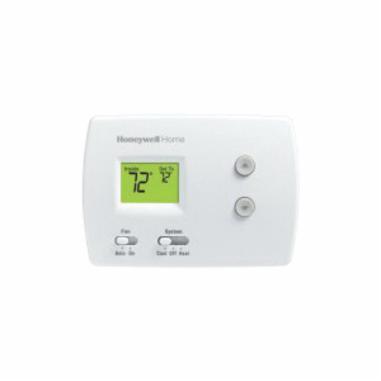

resideo TH3110D1008/U Non-Programmable Digital Thermostat, 20 - 30 V, 1 Heat/1 Cool
Brand: resideo
Item No: TH3110D1008
Sign In for Availability
Description
resideo Non-Programmable Digital Thermostat, 20- 30 V, 50/60 Hz, Manual,-Stages: 1 Heat/1 Cool, Heat-Off-Cool, Auto-On Switch Position, Relay Switch, Thermistor Sensing Element, Backlit Display, 40 to 90 deg F Heat, 50 to 99 deg F Cool Temperature Settings, 5 to 90 % Humidity Rating, 0.02 to 1 A Cool Current, 1 to 12 CPH Heating, 1 to 6 CPH Cooling Cycles per Hour, +/-1 deg F Accuracy, Battery, Hardwired, Horizontal Mounting, 3-13/16 in H x 5-3/8 in W x 1-1/4 in D, Premier White
Specifications
|
Accuracy |
+/-1 deg F |
|
Changeover |
Manual |
|
Color |
Premier White |
|
Cool Current |
0.02 to 1 A |
|
Cycles per Hour |
1 to 12 CPH Heating, 1 to 6 CPH Cooling |
|
Dimensions |
3-13/16 in H x 5-3/8 in W x 1-1/4 in D |
|
Display Type |
Backlit |
|
Frequency Rating |
50/60 Hz |
|
Humidity Rating |
5 to 90 % |
|
Mounting Type |
Horizontal |
|
Power Source |
Battery, Hardwired |
|
Sensing Element |
Thermistor |
|
Stages |
1 Heat/1 Cool |
|
Switch Position |
Heat-Off-Cool, Auto-On |
|
Switch Type |
Relay |
|
Temperature Settings |
40 to 90 deg F Heat, 50 to 99 deg F Cool |
|
Voltage Rating |
20 - 30 V |
