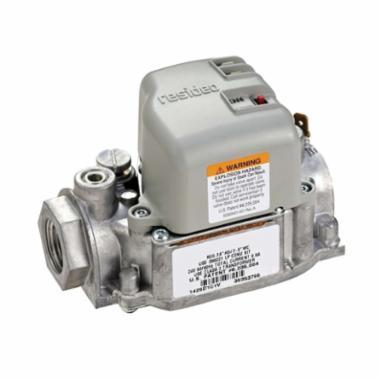

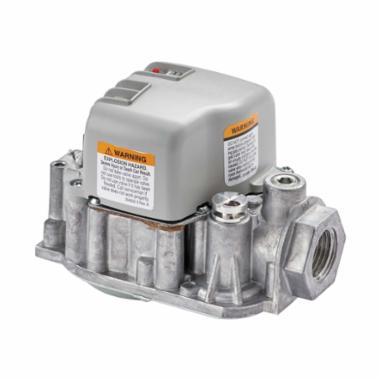

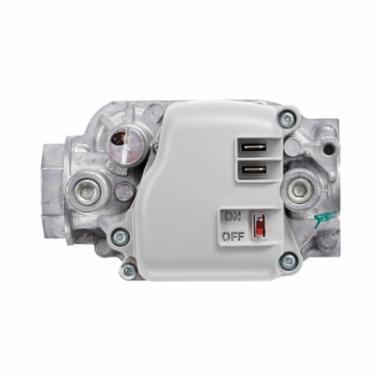

resideo VR8215T1502/U
resideo SmartValve™ VR8215T1502/U Gas Valve, 1/2 in Inlet, 1/2 in Outlet, Natural Gas Gas, Direct Ignition
Brand: resideo
Item No: VR8215T1502
Sign In for Availability
Description
The VR8215 direct ignition gas valves from resideo replace nearly all standard and slow opening VR8205 and VR8215 controls. The VR8215 valve can be mounted in any orientation and the reduced installation turning radius makes it much easier to install. They are a great fit for tight and open applications.
resideo SmartValve™ Gas Valve, 1/2 in Inlet, 1/2 in Outlet, Natural Gas, Direct Ignition, 0.5 psi, -40 to 175 deg F, 24 V, 50/60 Hz, Gray Body, 4.44 in Overall Length, 2.7 in Overall Width, 3.38 in Overall Height, Additional Information: Straight Body Pattern, Slow Opening, 1-Stage
Features
- Provide two-automatic valves that function independently, allowing one to act as a failsafe for the other
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted
- Meet codes requiring dual safety shut-off
- All adjustments, wiring connections and pilot outlet are accessible from top of control
Specifications
|
Additional Information |
Straight Body Pattern, Slow Opening, 1-Stage |
|
Body Color |
Gray |
|
Frequency Rating |
50/60 Hz |
|
Gas Type |
Natural Gas |
|
Ignition Type |
Direct |
|
Inlet Size |
1/2 in |
|
Outlet Size |
1/2 in |
|
Overall Height |
3.38 in |
|
Overall Length |
4.44 in |
|
Overall Width |
2.7 in |
|
Pressure Rating |
0.5 psi |
|
Temperature Rating |
-40 to 175 deg F |
|
Voltage Rating |
24 V |
