resideo VR8304M4507/U

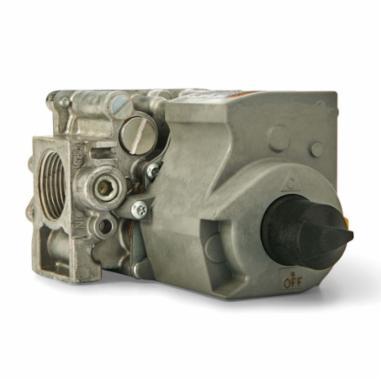

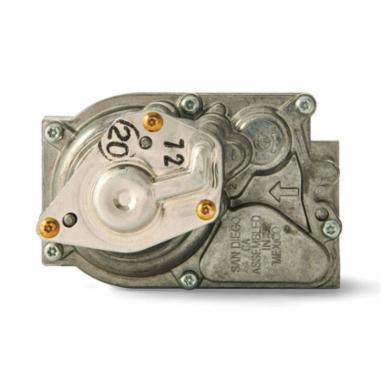

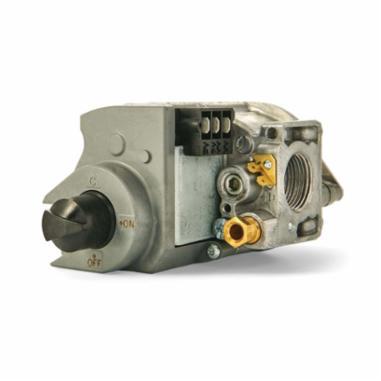

resideo VR8304M4507/U Gas Valve, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 300000 Btu/hr Nominal, Natural Gas Gas
Brand: resideo
Item No: VR8304M4507
Sign In for Availability
Description
Combination gas control for use in 24 V gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
resideo Gas Valve, Series: VR8304 Series, 3/4 in Inlet, 3/4 in Outlet, NPT End, 30000 to 300000 Btu/hr Nominal Capacity, Natural Gas, Intermittent Pilot Ignition, 0.5 psi, -40 to 175 deg F, 24 V, 60 Hz, Male Quick-Connect Electrical Connection, 2-11/16 in Overall Length, 4-1/16 in Overall Width, 5-3/8 in Overall Height, Additional Information: Standard Opening
Features
- Use with S86F, H/S860D/S8600F, H/S8610/S90A, B control modules
- Compact size
- Provide two-automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of the regulator, closes if gas or power supply is interrupted
- Meet codes requiring dual safety shut-off
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- On-off lighting sequence
Specifications
|
Additional Information |
Standard Opening |
|
Electrical Connection |
Male Quick-Connect |
|
End Type |
NPT |
|
Frequency Rating |
60 Hz |
|
Gas Type |
Natural Gas |
|
Ignition Type |
Intermittent Pilot |
|
Inlet Size |
3/4 in |
|
Nominal Capacity |
30000 to 300000 Btu/hr |
|
Outlet Size |
3/4 in |
|
Overall Height |
5-3/8 in |
|
Overall Length |
2-11/16 in |
|
Overall Width |
4-1/16 in |
|
Pressure Rating |
0.5 psi |
|
Series |
VR8304 Series |
|
Temperature Rating |
-40 to 175 deg F |
|
Voltage Rating |
24 V |
