Rheem® 42-22655-02

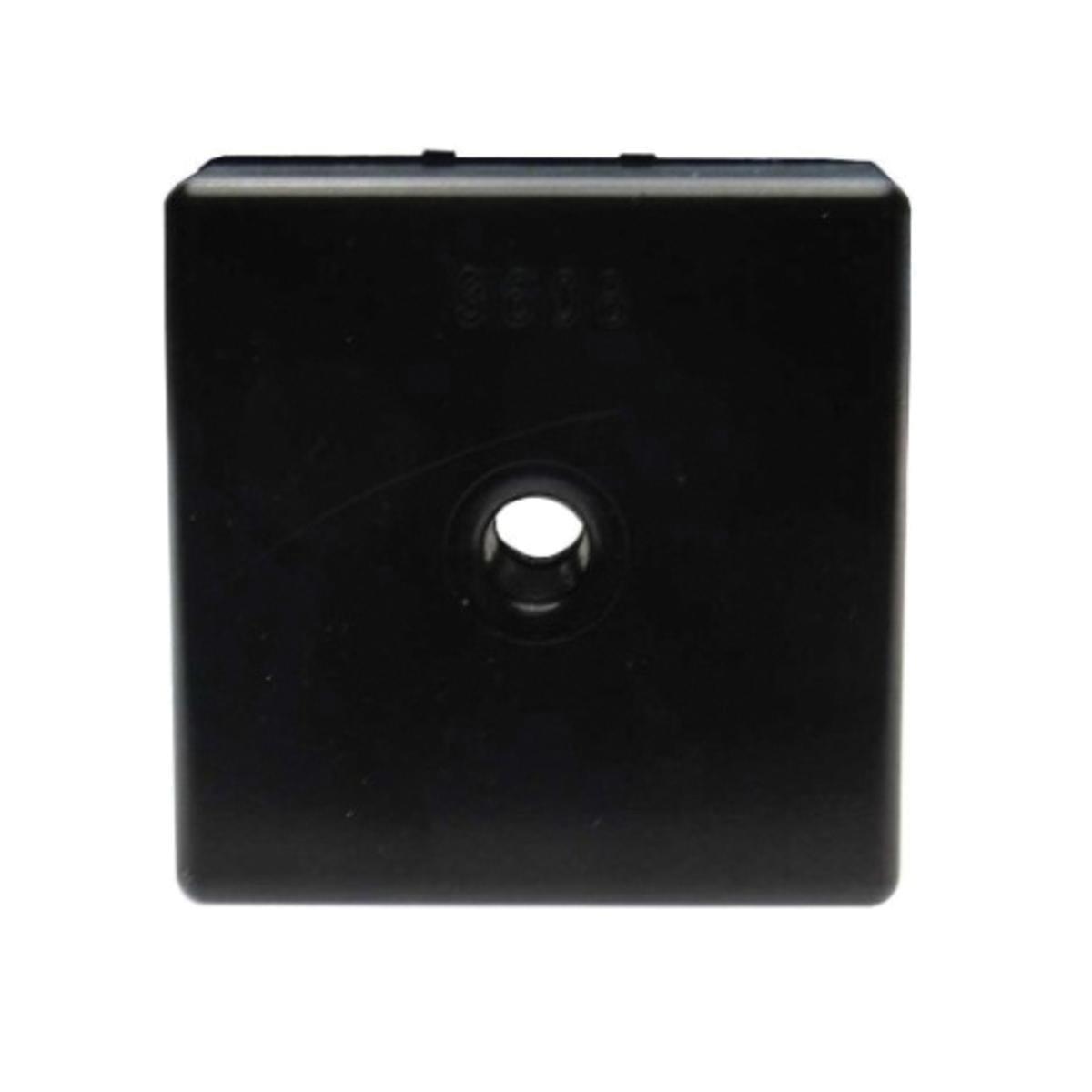

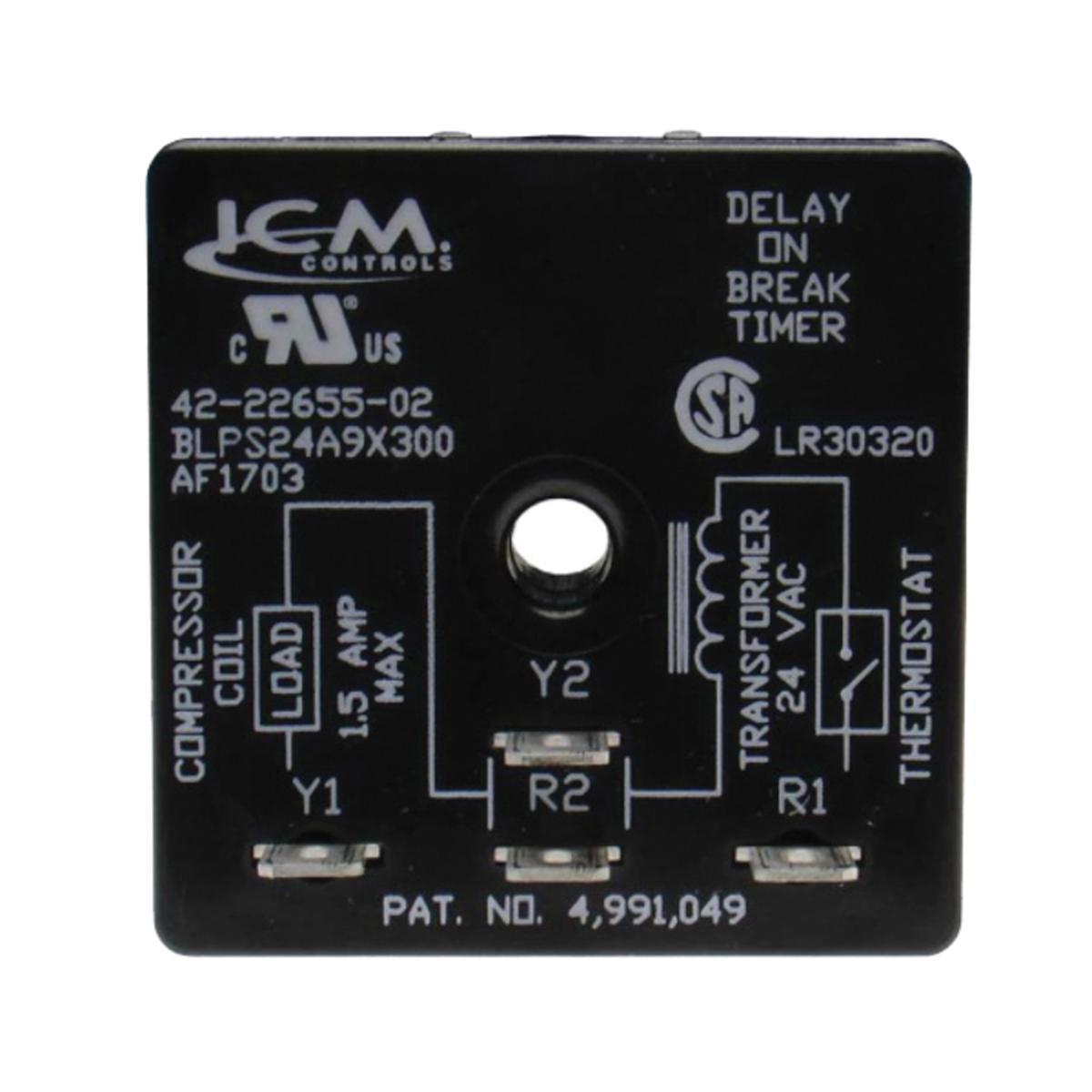

Rheem® 42-22655-02 Time Delay Relay, 1.5 A, For Use With: Model RADD, RAJB, RAKA, RAKB Condensing Units
Brand: Rheem®
Item No: 42-22655-02
Sign In for Availability
Description
Upon application of power, the load is energized. When the control switch opens or there is loss of power, the load is de-energized and the delay period begins. The load will not start again during the delay period. Restart occurs after the delay period has elapsed. Common applications include protecting equipment from damage which may be caused by the rapid short cycling of compressors.
Rheem® Time Delay Relay, 18 to 30 V, 1.5 A, 1/4 in Quick-Connect Terminal, For Use With: Model RADD, RAJB, RAKA, RAKB Condensing Units
Specifications
|
Amperage Rating |
1.5 A |
|
Suitable For Use With |
Model RADD, RAJB, RAKA, RAKB Condensing Units |
|
Terminal Type |
1/4 in Quick-Connect |
|
Voltage Rating |
18 to 30 V |
