Rheem® 47-21711-11

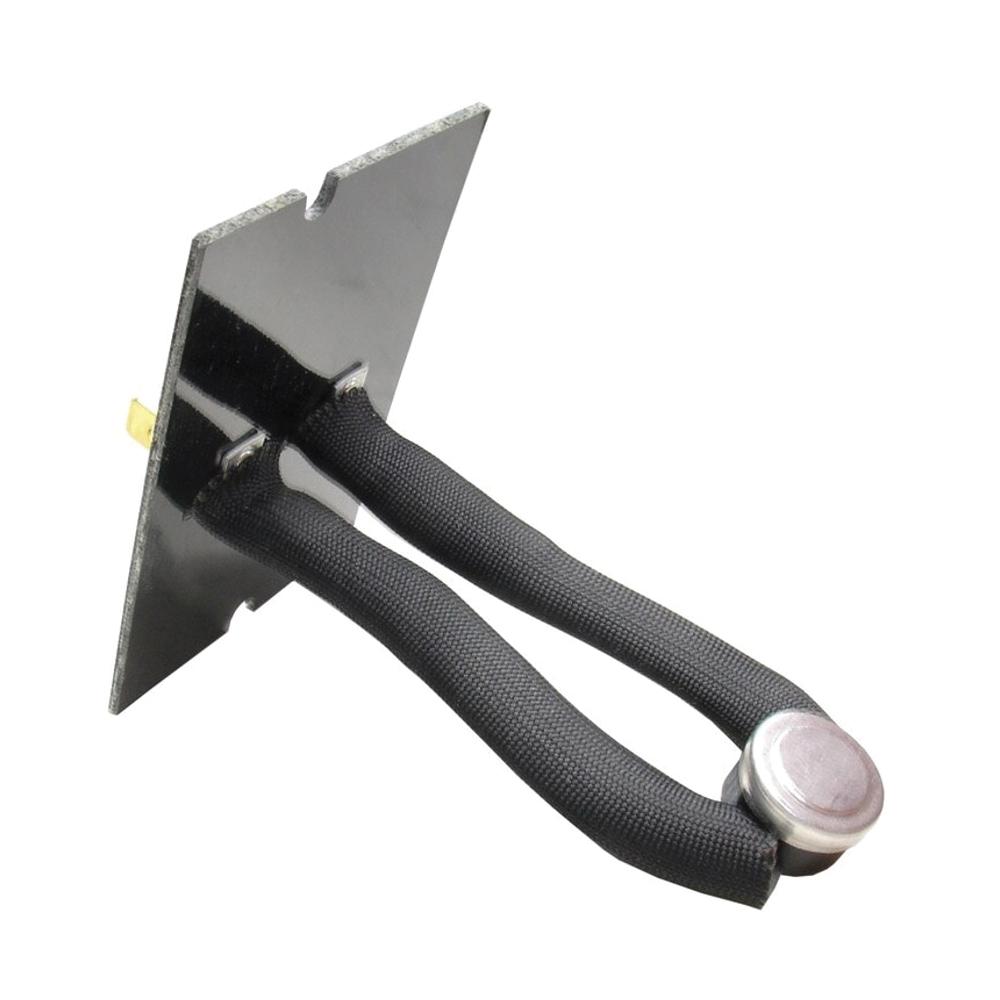

Rheem® 47-21711-11 Limit Switch, 120/230 VAC, 15/10 A, SPST Switch
Brand: Rheem®
Item No: 47-21711-11
Sign In for Availability
Description
Rheem® Limit Switch, 120/230 VAC, 15/10 A, SPST Switch, Contact Configuration: NC, 1 -Pole, Opening Temperature: 180 deg F, Closing Temperature: 160 deg F, 1/4 in Quick-Connect Connection, Insertion Length: 7 in, Automatic Reset Actuator, 90 deg Strap Angle Board Mount, 1-7/8 in L x 2-3/4 in W, For Use With RGED Package Gas/Electric Rooftop Units, 36T TOD Switch Series, Enclosed Disc Face, 20 deg F Nominal Temperature Difference
Specifications
|
Actuator Type |
Automatic Reset |
|
Additional Information |
36T TOD Switch Series, Enclosed Disc Face, 20 deg F Nominal Temperature Difference |
|
Amperage Rating |
15/10 A |
|
Closing Temperature |
160 deg F |
|
Connection Type |
1/4 in Quick-Connect |
|
Contact Configuration |
NC |
|
Dimensions |
1-7/8 in L x 2-3/4 in W |
|
Insertion Length |
7 in |
|
Mounting Type |
90 deg Strap Angle Board |
|
Number of Poles |
1 |
|
Opening Temperature |
180 deg F |
|
Suitable For Use With |
RGED Package Gas/Electric Rooftop Units |
|
Switch Type |
SPST |
|
Voltage Rating |
120/230 VAC |
