Rheem® 47-22383-37

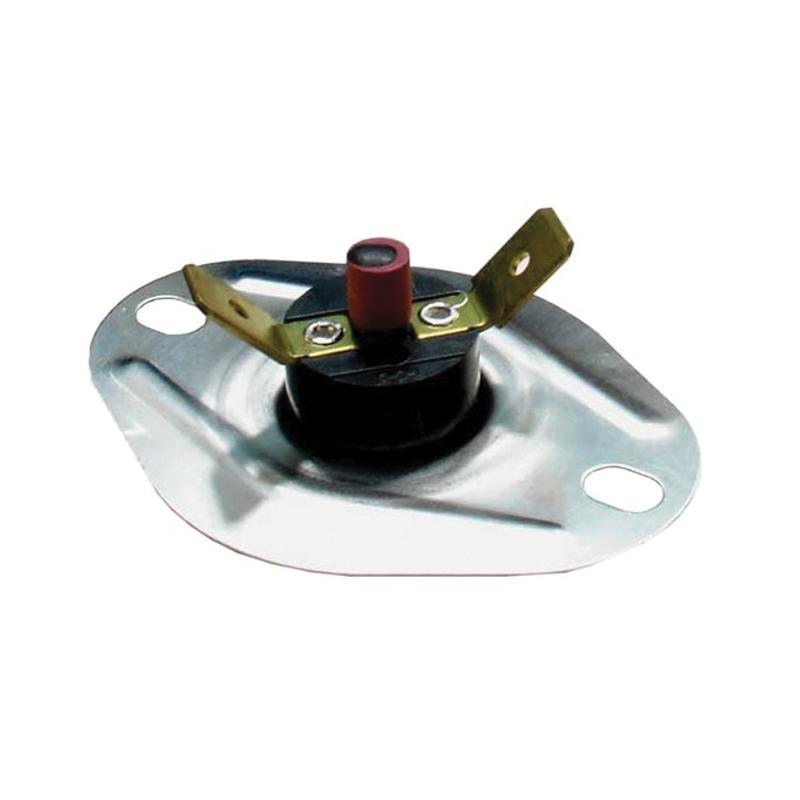

Rheem® 47-22383-37 Limit Switch, 120/230 VAC, 15/10 A, SPST Switch
Brand: Rheem®
Item No: 47-22383-37
Sign In for Availability
Description
Rheem® Limit Switch, 120/230 VAC, 15/10 A, SPST Switch, Contact Configuration: NC, 1 -Pole, Opening Temperature: 340 deg F, Closing Temperature: 45 deg F, 1/4 in Quick-Connect Connection, Insertion Length: 3/16 in, Manual Actuator, Flanged Airstream Mount, 36T TOD Switch Series, Enclosed Disc Face
Specifications
|
Actuator Type |
Manual |
|
Additional Information |
36T TOD Switch Series, Enclosed Disc Face |
|
Amperage Rating |
15/10 A |
|
Closing Temperature |
45 deg F |
|
Connection Type |
1/4 in Quick-Connect |
|
Contact Configuration |
NC |
|
Insertion Length |
3/16 in |
|
Mounting Type |
Flanged Airstream |
|
Number of Poles |
1 |
|
Opening Temperature |
340 deg F |
|
Switch Type |
SPST |
|
Voltage Rating |
120/230 VAC |
